3/4" Inch Shelf Attachment and Remixed for Dry Container Usage

prusaprinters

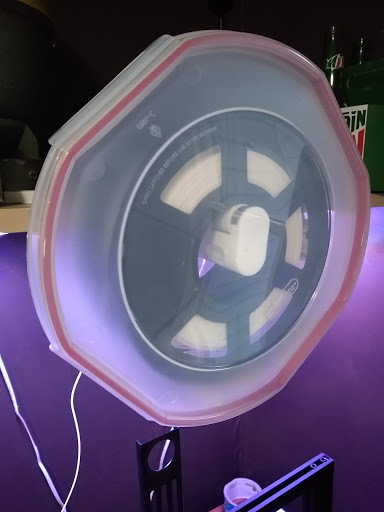

<p>This is a remix of HugoHuge's Filler and Mojoaris' remix of the Filler for the Ender 3. <a href="https://www.thingiverse.com/thing:3209211">https://www.thingiverse.com/thing:3209211</a></p> <p>I took the stock 3/4" board mount and edited it so it now fits horizontally on a shelf (The space is 19mm wide in the bracket) and I placed a countersunk screw hole in it.</p> <p>I took the standard filament roller guide and removed the guide and attached the Ender 3 screw cap to it. I then shorted (About 10mm shorter then the standard guide/roller) up the Ender 3 roller and roller guide by 5 minutes so it would fit my 4.7 Quart Sterilite Rocket Red Ultra Seal Latching Bowl ( https://www.amazon.com/dp/B0042FJSLQ/ Although I suggest you buy it at your local super market because it's cheaper) when sealed.</p> <p>To assemble just cut a 30mm hole in the bottom of the bowl and a small hole for the filament to come out of then screw and slide everythign together. Toss what ever spare silica packages you happen to have from your filament boxes and bags in the bowl to help with the drying and enjoy a job well done.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Ender 3</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>50%</p></div> <p><strong>Filament:</strong> Inland PLA+ Black</p> </p></p></p> Category: 3D Printer Accessories
