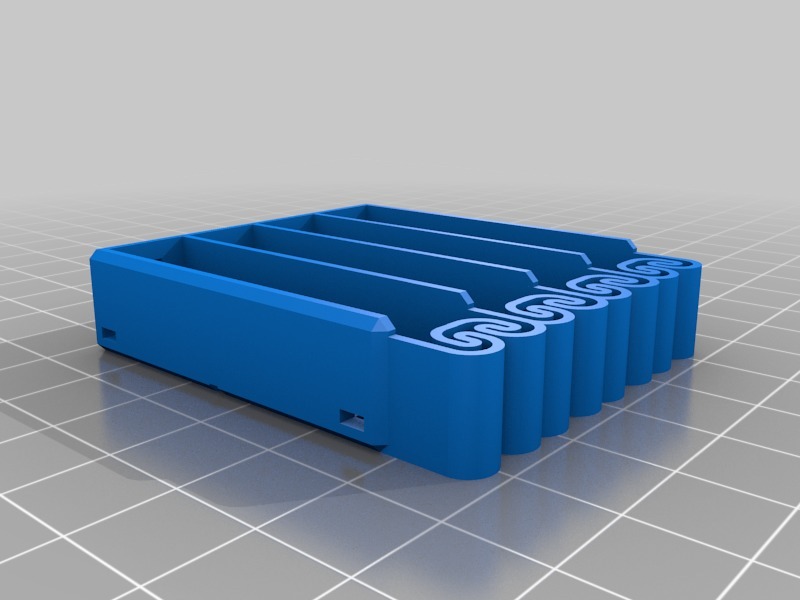

4xAAA Battery Holder with Integrated Spring (narrow version)

prusaprinters

<p>This model is inspired by <a href="https://www.thingiverse.com/thing:456900">https://www.thingiverse.com/thing:456900</a>. It is made to be 7.4 mm narrower than the original, saving precious space in your models.</p> <p>That is achieved by thinning the walls between the batteries down to 1 mm (rather than the original 3.5 mm). Therefore, the springs had to be completely remodeled.</p> <p>It also has only 4 M2 mm screw holes and additional cable management holes at the anodes side.</p> <p><strong>Recommended Extrusion Width: 0.56 mm</strong></p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>I3 MK3S</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.20</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div></p> <p><strong>Notes:</strong></p> <p><strong>Extrusion Width:</strong> 0.56 mm</p> <p><strong>Material:</strong> PET or ABS</p> <h3> Post-Printing</h3> <p>Use thin wires (up to 1.3 mm in diameter) to connect the cathodes and anodes of the adjacent batteries, using the integrated cable management ridges and holes. Make a few loops around each contact, rather than welding, because you have to be really skillful not to melt the plastic in the process.</p> </p></p></p> Category: Electronics
