Anet A8 corner rigidifier (stronger)

prusaprinters

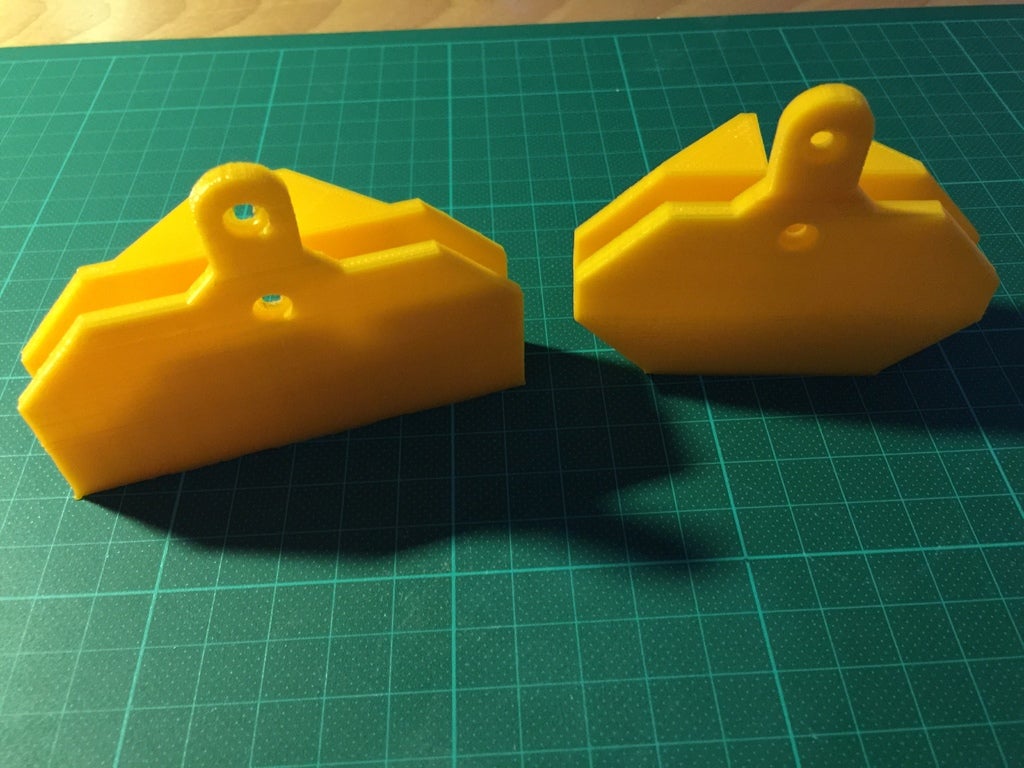

<p>I liked the original design but felt it was too weak.</p> <p>I updated the file because the gap in the original (angular top) is 8.1 mm.<br/> The gap of the tight version (round top) is 7.9 mm.</p> <p>Update 03.03.2017<br/> Added a prettier variation of the 7.9 mm version with a thicker outer wall that makes it less likely to break when tightening the screws.</p> <p>Anet A8: <a href="http://s.click.aliexpress.com/e/mSqf4Nu4">http://s.click.aliexpress.com/e/mSqf4Nu4</a></p> <h3>Print instructions</h3><p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> 0.2</p> <p><strong>Infill:</strong> 20% (0-40mm), 100% (40mm-top)</p> <p><strong>Notes:</strong></p> <p>Used the orange Anet PLA filament and had some grinding issues.<br/> 210°/55°, 40mm/s, ~6h printing time (for 2).</p>
