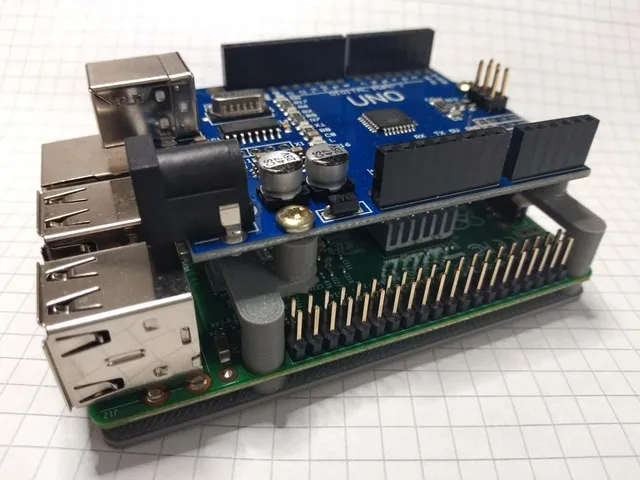

Arduino Uno to Raspberry Pi 2,3 Mount
prusaprinters
Inspired by Arduino to Raspberry Pi Mount V1.0 adapted for newer Raspberry Pi 2/3 with 40pin header. Use bottom plate with 3.2mm holes to protect the PCB from the bottom. Print the ArduinoStandOff 4+ times and glue it to the bridges. Cut the M3 thread to the standoffs (holding the standoffs in pliers) before gluing (can easily break). Bottom screws are M2.5. Print Settings Printer Brand: MakerBot Printer: MakerBot Replicator 2 Rafts: No Supports: No Resolution: 0.3 Infill: 20 Filament: Makerbot PLA Gray Category: Electronics
