Azteeg X5 mini faceplate and mount

prusaprinters

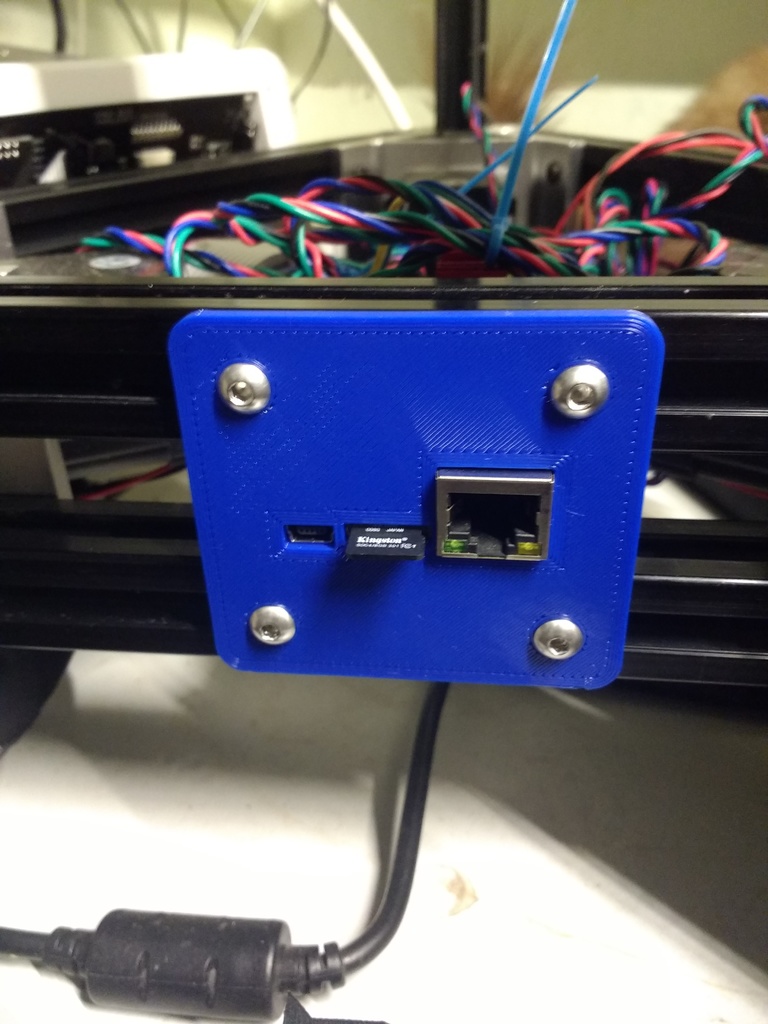

<p>Faceplate and mount for azteeg x5 mini v3. I don't have wifi version but just slight modifications to faceplate may make it work.</p> <p>Faceplate mounted with 4 M4x8 button head screws and mount with 2 M5x8 socket head screws.</p> <p>Azteeg is held by faceplate ridge and 2 M3 screws.</p> <p>Mount has holes for M3x4x4 brass inserts but regular nylock nuts can be used instead with longer screws.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>kossel by dc42</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2</p></div> <p><strong>Infill:</strong></p> <p>15%</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>Faceplate doesn't need supports. Mount does.</p></div> </p></p> Category: 3D Printing
