Bafang BBS01/BBS02 controller gasket

prusaprinters

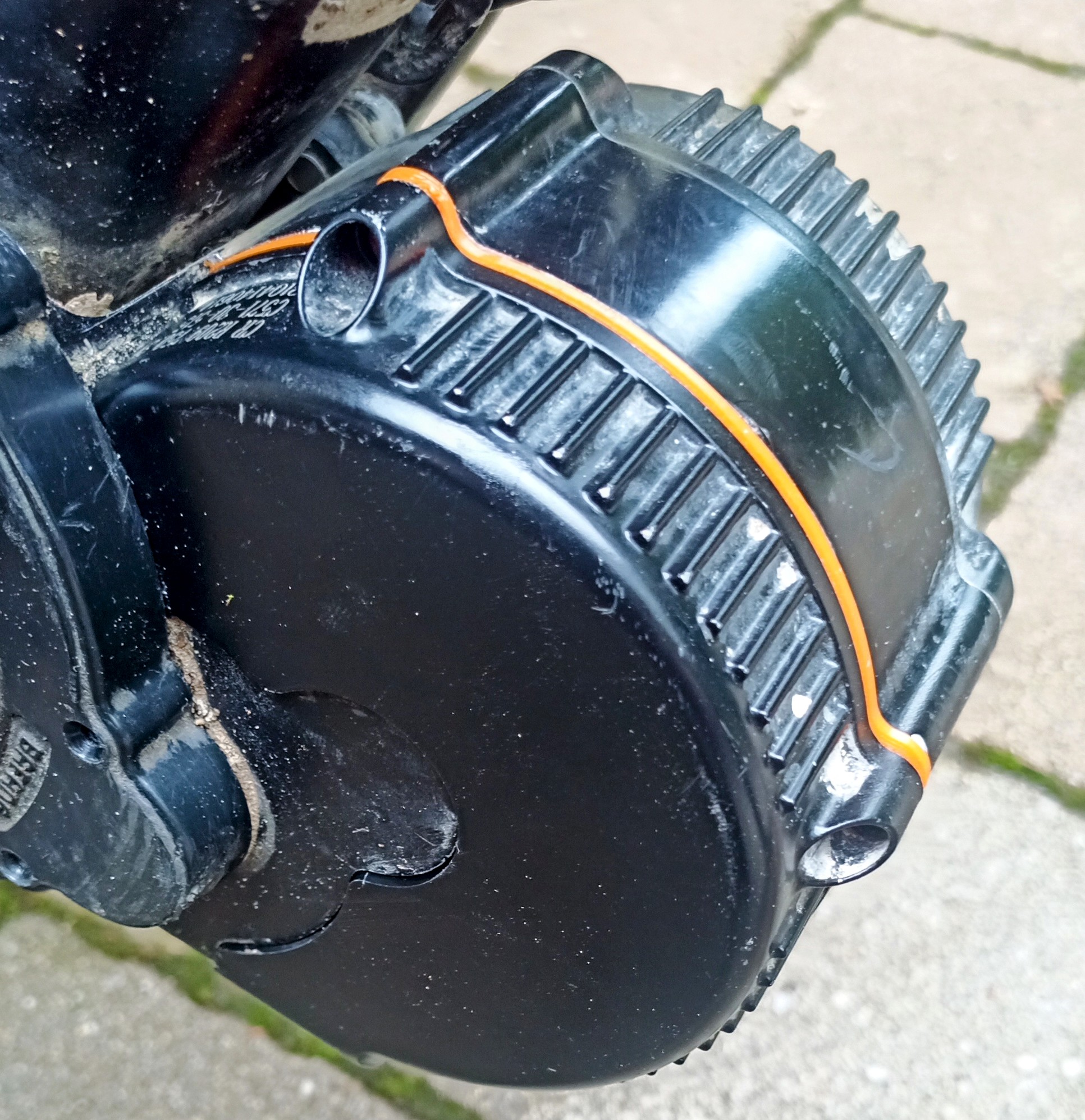

<p>Print in medium hard TPU, use circular top and bottom pattern. Print slowly. It's better to have a slight underextrusion than too much.</p><p>The model is slightly thicker than the original (2 mm vs 1,5 mm) so it squishes it a bit to help achieve a better seal. It also has a bigger flange so you don't need to glue it. STEP file is included.</p><p>Remove the original seal and clean the glue off thoroughly. Seat the gasket well with the flange inward, place the controller, put in the screws and lightly tighten them first, the gasket should stick out just slightly all around. Then tighten crosswise in small increments to 2-3 Nm.</p>
