Bambu Lab A1 Mini filament Poop Deflection System

prusaprinters

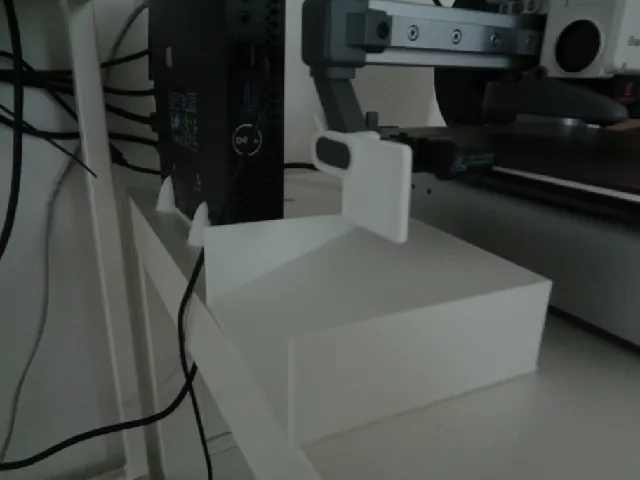

This model is made up of 3 files: The Container, The Deflector, and Designer Notes. The Container: The container/slide is the largest part which consists of a slide and a small containment system at the bottom. The shape can also be inverted to turn into a “Slide” for which is can now be utilized as a way to slide down any waste that is emitted from the A1 Mini's discharge system.The Deflector: The deflector is the smallest part of the design it consists of a small, lightweight design remastered from ThreeD-Michael's original design. This part is simply a way for the “Poop” to end up in a uniform location, which in this case is custom designed to perfectly fit for the A1 Mini.Design Notes: A set of simple design notes that designer gave for other printers.Link for Design notes: https://drive.google.com/file/d/1sbxKBobrDP7IxE-XVObbq2T_9mgJqHhc/view?usp=sharing  Print Parameters: (Numbers given by Bambu Studio Slicer, numbers for Bambu A1 Mini, numbers approx)Container/Slide: Print time: EST- 1 Hour 45 Minutes (Following the .3mf)Amount of Filament used: EST- 45 Grams of PLA PlasticPrinter and Slicer: Bambu Lab A1 mini, Bambu Studio Slicer (Based on Prusa Slicer)Filament type: Generic PLATinkerCad for Designing CAD model  The Deflector: Total Print time: EST- 17 MinutesAmount of Filament used: EST- 4.10 grams of PLA PlasticPrinter and Slicer: Bambu Lab A1 mini, Bambu Studio Slicer (Based on Prusa Slicer)Filament type: Generic PLATinkerCad for Designing CAD model
