BIGTREETECH PITFT50 V1.0 + Raspberry PI 4 + low feet
prusaprinters

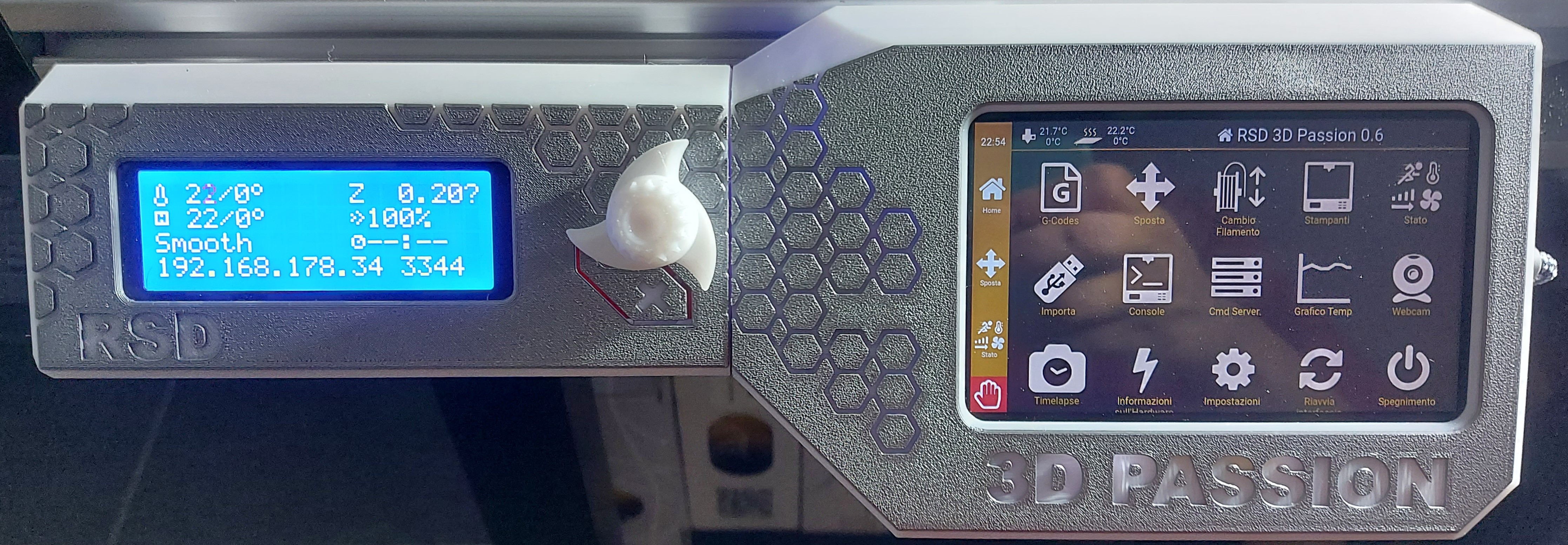

<p>I redesigned the LCD & Touchscreen front panels for my printer made at home and I modified them to be fitted on my Prusa MK3S also.<br>The LCD & Touchscreen support will mount using the same screws of the original, but be aware that you need to immers the nuts (M3) during the printing.<br>I fixed both covers (LCD & Touch) on the support using the bolts (M4) 10mm & M4 nuts.<br>I fixed the BIGTREETECH touch in the cover using the 4 clips (look STL file) and the bolts (M3) 8mm.<br>To power the Raspberry PI 4B I used the Down Control Module LM2596 connected directly to the 24V of the Prusa PSU.</p><ul><li>Bolts M4 10mm →<a href="https://www.amazon.de/-/en/BQLZRN12406/dp/B01MD1KGX8/ref=sr_1_2?dchild=1&keywords=bqlzr+M4+METRISCH&qid=1630264833&sr=8-2"> https://www.amazon.de/-/en/BQLZRN12406/dp/B01MD1KGX8/ref=sr_1_2?dchild=1&keywords=bqlzr+M4+METRISCH&qid=1630264833&sr=8-2</a></li><li>LM2596 Module → <a href="LM2596">https://www.amazon.de/-/en/dp/B07F38DJLS/ref=sr_1_4?crid=14HEAW2KE3XA9&dchild=1&keywords=lm2596&qid=1630266769&sprefix=lm2596%2Caps%2C200&sr=8-4</a></li></ul>
