Box for dual relais module

Box for dual relais module

prusaprinters

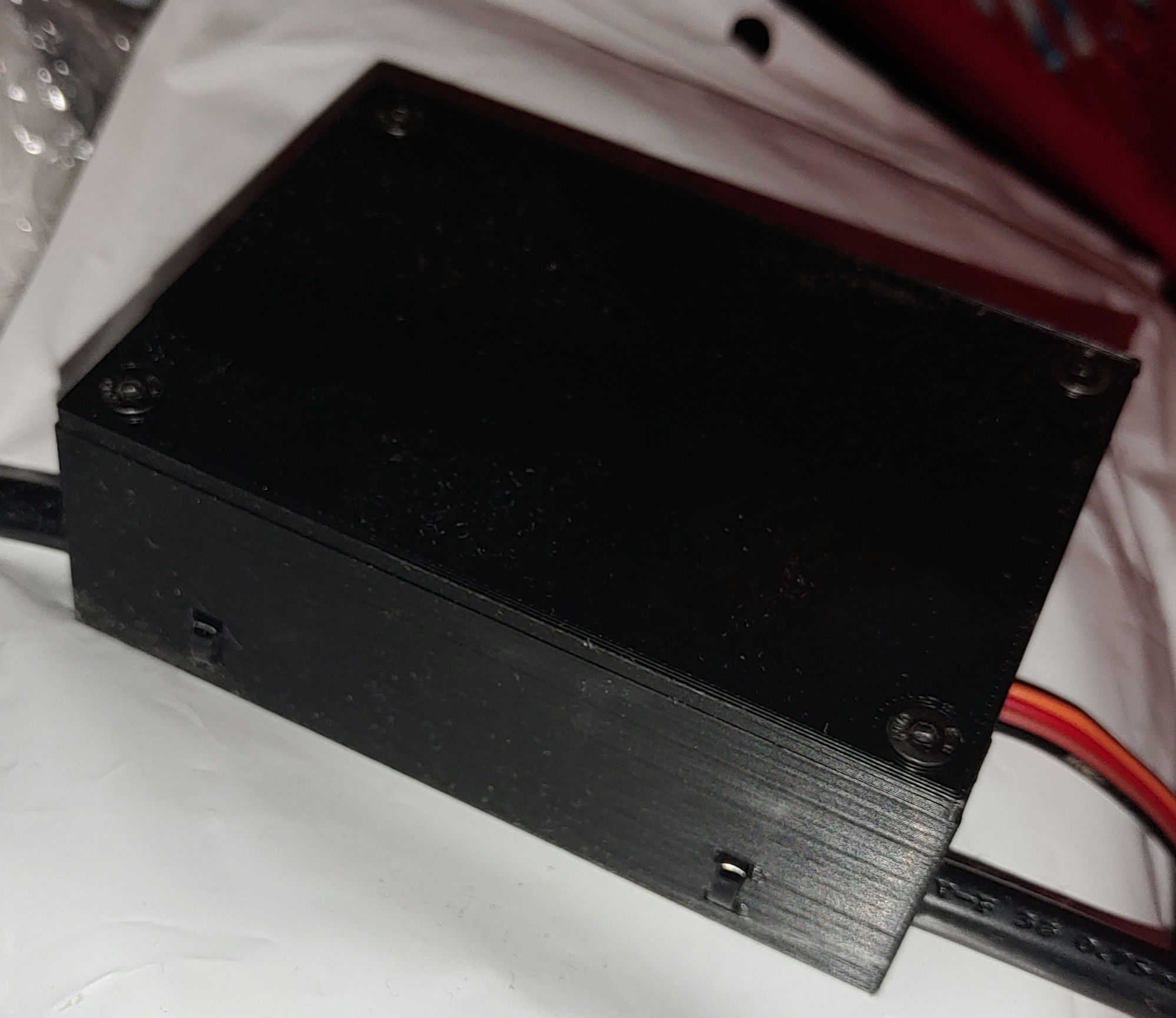

<p>I designed this box to hold a <a href="https://amazon.de/dp/B07GXC4FGP?ref_=cm_sw_r_cp_ud_dp_5766NVWD40R490JA7D1D">Yizhet 2 Channel Relais Module</a>.</p><p>I melted 4 M3x4x5 thread inserts into the bottom part to be able to screw on the top. There are 4 holes in each side of the bottom part to fasten the cables with cable ties.</p><p>The top has a little cutout for the 5V and control cables.</p><p>I included the blendfile for easier remixing.</p><p>I printed it without support. On the bottom part, there is some overhang but I just cut away the loose filament after printing.</p>
