Box for LCR-T3 Graphical Multi-function Tester
prusaprinters

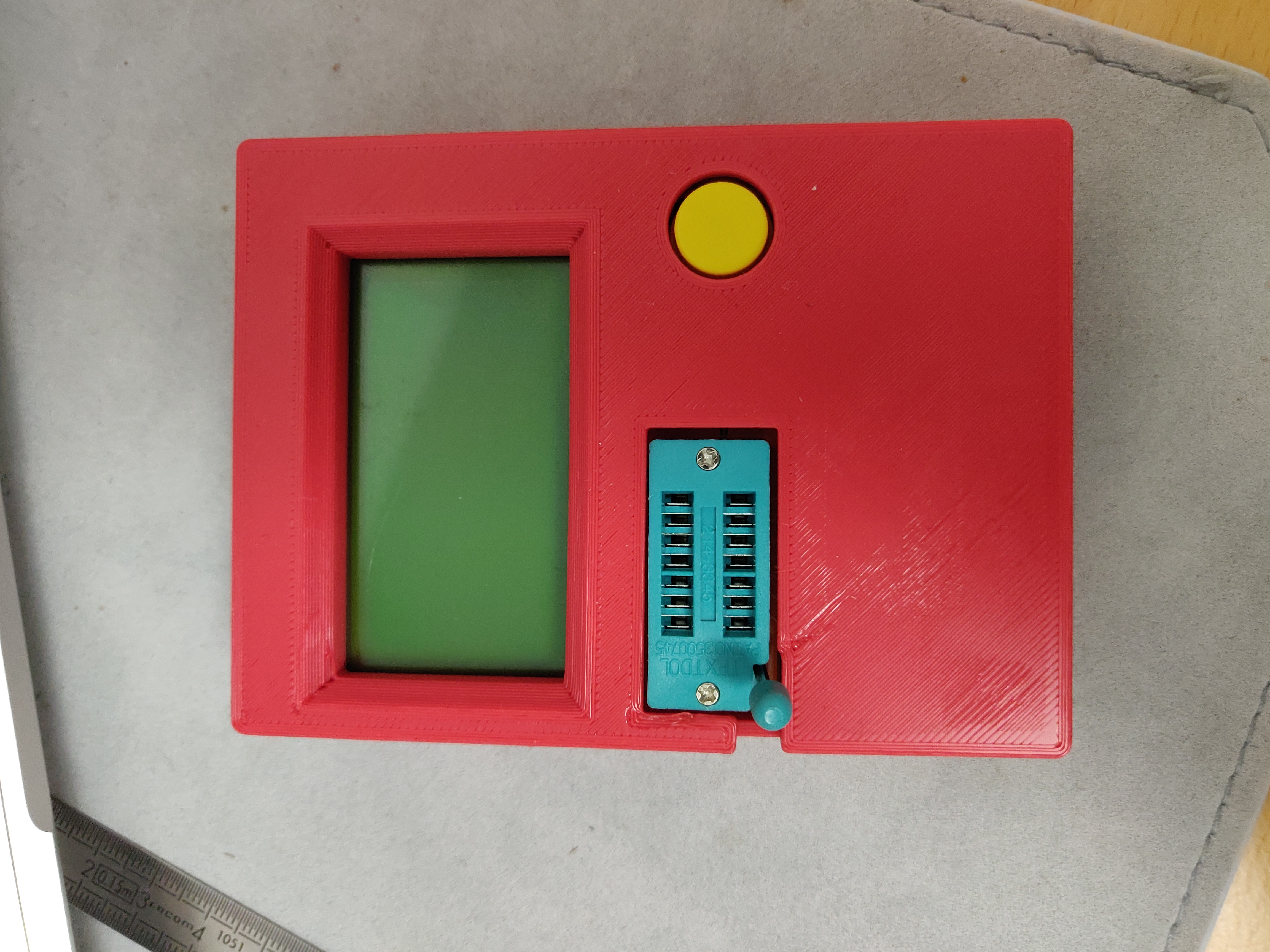

<p>Since I did not manage to find an existing print which fit my LCR-T3, I created mine.</p> <p>I used 3 M3x5 screws to secure the tester, and a M3x12 screw to create the thread in each hole. Due to poor board layout, a fourth screw cannot be used. Note that spacing could be improved, to better center the button, or adjust the size of some cuts.</p> <p>Model displayed in photos is printed with a basic PLA (not so great), with 0.3mm setting, 20% infill, 3 perimeters and thin walls detection.</p> <p>Reference of the LCR-T3 tester : <a href="https://www.aliexpress.com/item/1908731704.html">https://www.aliexpress.com/item/1908731704.html</a><br/> Inspiration : <a href="https://www.prusaprinters.org/prints/34496-lcr-t3-component-tester-enclosure">https://www.prusaprinters.org/prints/34496-lcr-t3-component-tester-enclosure</a></p>
