Box for Lolin ESP32 with OLED
prusaprinters

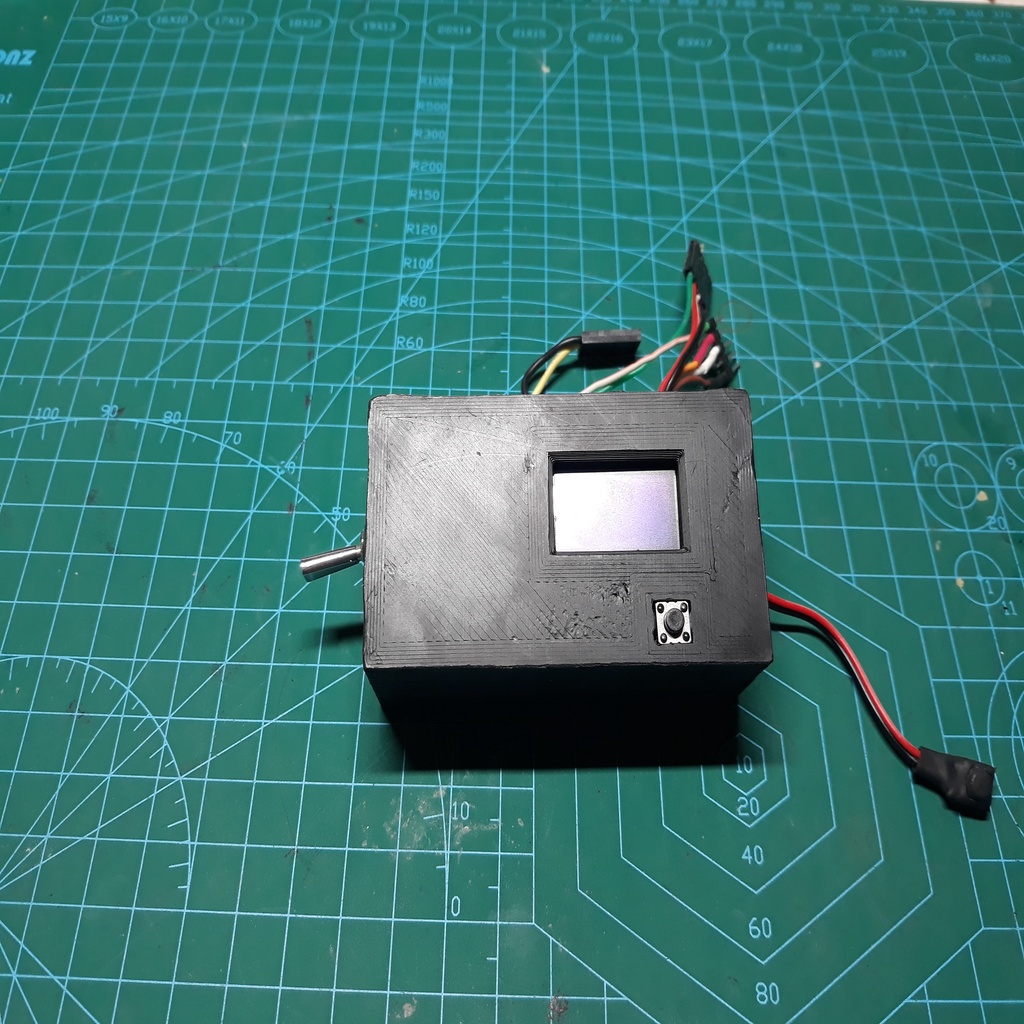

<p>This is part of a bigger project but I thought the case may be of use to anyone who might want to build something using the Lolin ESP32 Oled board.</p> <p>The board mounts with 2mm screws self tapping to bottom of the box. The mounting back</p> <p>is secured using self tapping 3mm screws.</p> <p>I have a 1/4 inch hole on one end for a switch and the other is open to connect a micro usb cable.</p> <p>I needed a switch to Tare my readings so I experimented with a recessed 6mm square hole for a 6mm Tactile push button switch. Just push the leads through the front and solder the leads on the inside which keeps the switch in position.</p> <p>Hope someone finds it useful .</p> <p>Cheers</p> <p>Kisssys</p> Category: Electronics
