Bracket preload jig for MakerBeam XL

prusaprinters

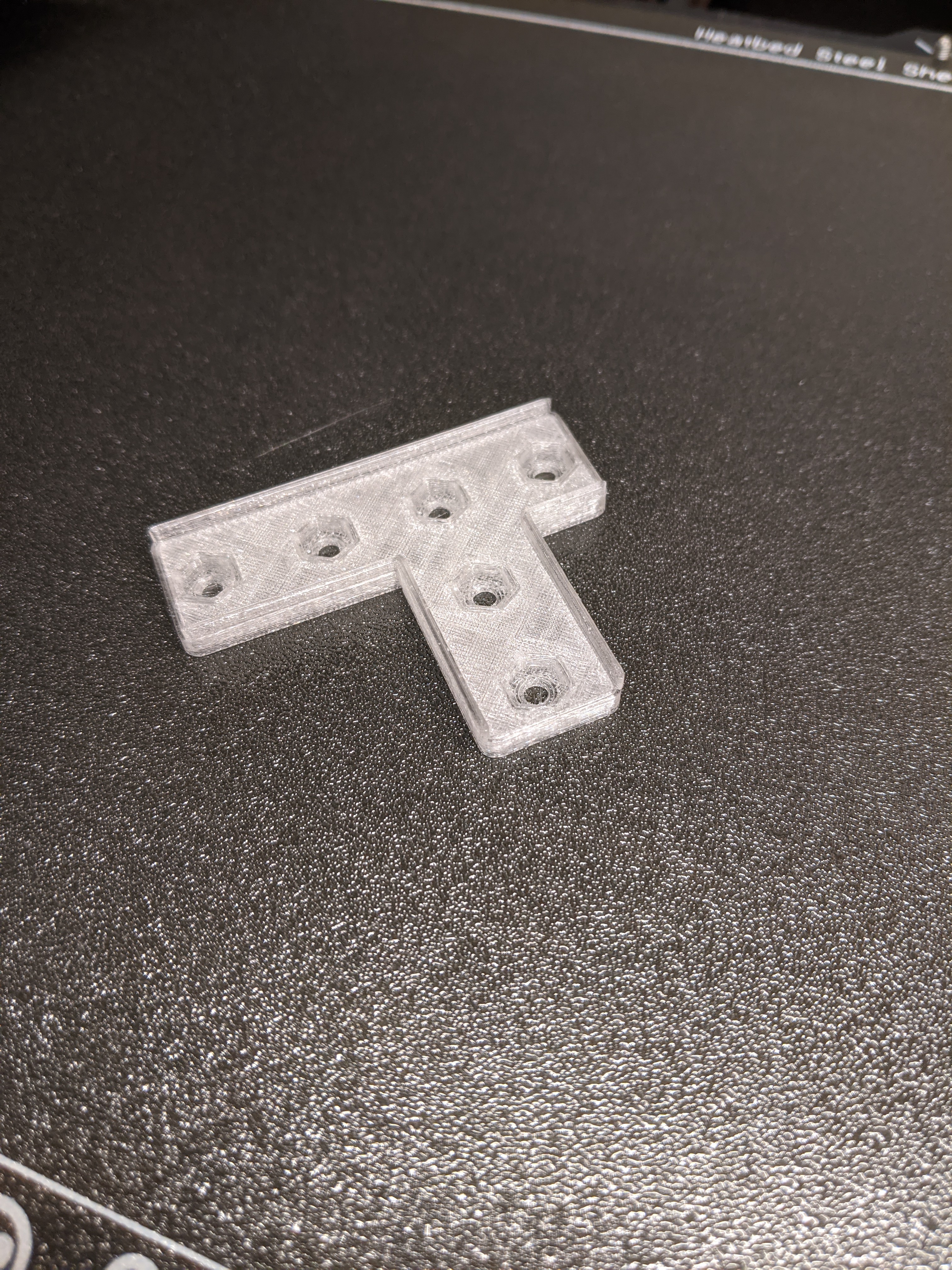

<p>Make assembly of MakerBeam XL a little easier by pre-loading your brackets with bolts and nuts.</p> <h3>Print instructions</h3><p>Print with whatever you have on hand. I used PETG only because that's what I happened to have loaded into my printer.</p> <p>To use:</p> <ol> <li>Drop nuts into the hexagonal recesses on the jig</li> <li>Fit the bracket on top</li> <li>Thread bolts through the bracket and twist just enough to engage with the nuts</li> <li>Remove from jig and slide into MakerBeam rods.</li> </ol> <p>Tested with:</p> <ul> <li>T-bracket XL (MakerBeam product number 103004)</li> <li>Right angle XL (101732)</li> <li>M3 nut (100416)</li> <li>Button head socket bolt (100933)</li> </ul>
