Captain Hook Returns!

prusaprinters

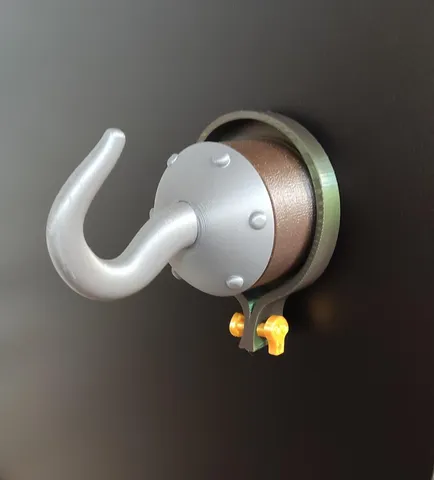

PresentationThis new version of the hook is composed of 8 parts:The three new parts: the sleeve, cuff links screw and nut: these parts can be used to hang keysThe original parts (the same parts as supplied in the previous design): The base: the core of the hook, used to be fixed on a wall. (It also serves as a secret compartment, but do not tell anyone 😉)The base of the hook : it is the door of the secret compartment.The hook : it is used to hang lightweight objectsThe axle : connects the base of the hook to the baseThe screw of the hook : it is used to connect the hook and its base togetherPrinting informationThe hook, the axle and the cufflink screw need supports.For more robustness, print the axle, the hook and the screw with a PC Blend filement or at least with a PETG one (avoid PLA if you can).It is sufficient to print the parts with a layer height of 0.2mm, even for the screws and the axle.Caution: don't print the new sleeve with the "Fuzzy skin" option because it contains a screw thread that will be misprinted when using this option.Assembly instructionScrew the cuff link screw on the sleeve then screw the nut on the screw:   2. Please follow the previous assembly guide.
