Compact Tripod XS

prusaprinters

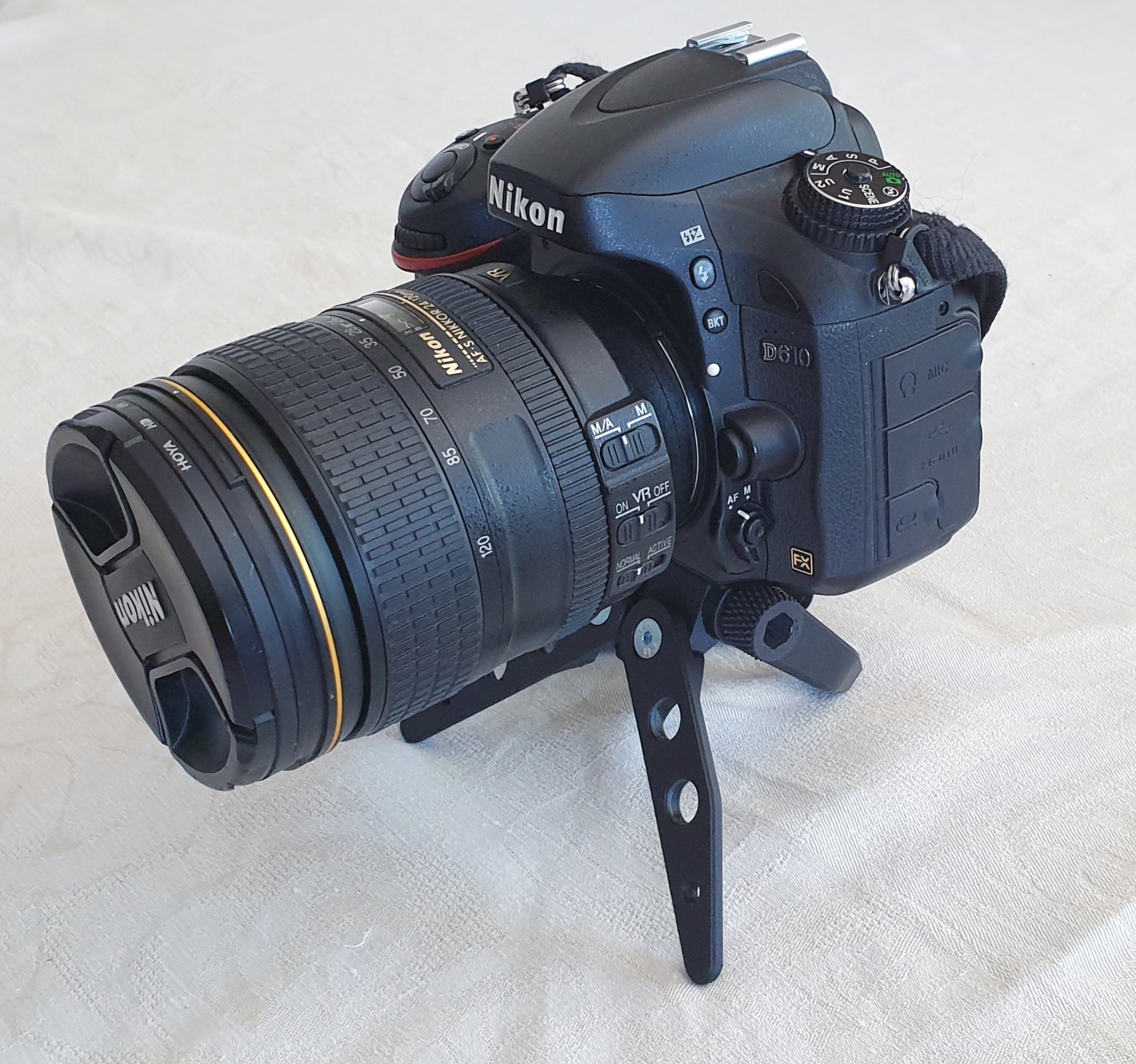

<p>This is an XS version of the tripod I re-designed inspired by Kernel770's tripod. It was primarily designed for those with really small 3.5in³ printers and has shorter legs. In all other aspects it is identical to my larger tripod.</p> <p>It can handle a heavy DSLR with heavy lens and is so small it can stay on the camera. :)</p> <p>The camPad is printed in flexible TPU and the rest in ecoPLA.</p> <p>The 1/4-screw is held in place by a small piece of filament glued in place by CA-glue.</p> <p>Support is recommended when printing camMount.</p> <p>Using toothed washers with external-tooth is recommended for heavy setups but is otherwise not needed.</p> <p>As always, if you find it useful a tiny donation goes a long way to show appreciation. :)</p> <p>Hardware needed:<br/> 1 pcs M5x50 hex-head screw<br/> 1 pcs M5 nut<br/> 2 pcs M5x10 countersunk screws<br/> 2 pcs M5 Nyloc nuts<br/> 1 pcs 1/4 10mm screw (<br/> <a href="http://www.amzn.de/dp/B00OOLKD3K">http://www.amzn.de/dp/B00OOLKD3K</a><br/> )<br/> 2 pcs M5 toothed washers (external-tooth)</p> <h3>Print instructions</h3><p>See attached 3mf-file. I've printed successfully in PLA and PETG. Print the pad preferably in flex material like TPU.</p>
