CR10 V3 Filament Sensor Guide Bracket
prusaprinters

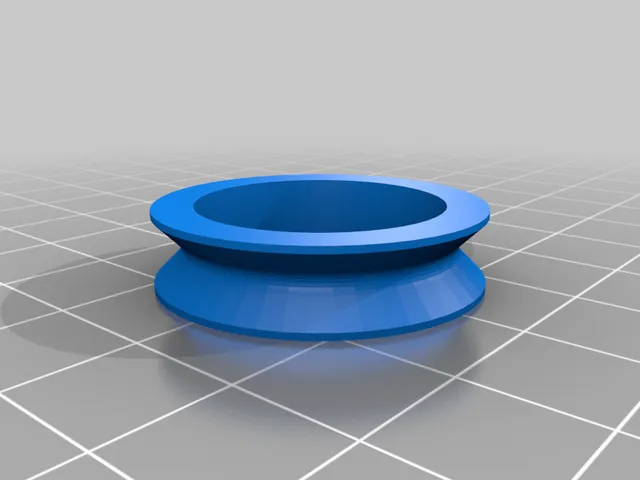

This is a modification of the https://www.thingiverse.com/thing:4678852 I removed the bearing post and changed it to a M8 hole. Use M8-1.25 x 1.25 or longer screw/bolt 4 to 6 washers to center the Type 608ZZ ball bearing. I also added filets to all the corners to decrease stress points on the part You need one bracket and one bearing runner printed. Additional you will need the following: 1x M8-1.25 x 1.25in or longer screw/bolt 1x M8-1.25 Hex Nut 4 to 8 M8 washers Print Settings Printer Brand: Creality Printer: CR-10S Rafts: No Supports: Yes Resolution: 200 Infill: 50 Filament: Inland PLA or PETG Any Category: 3D Printer Parts
