Customizable spool adapter

prusaprinters

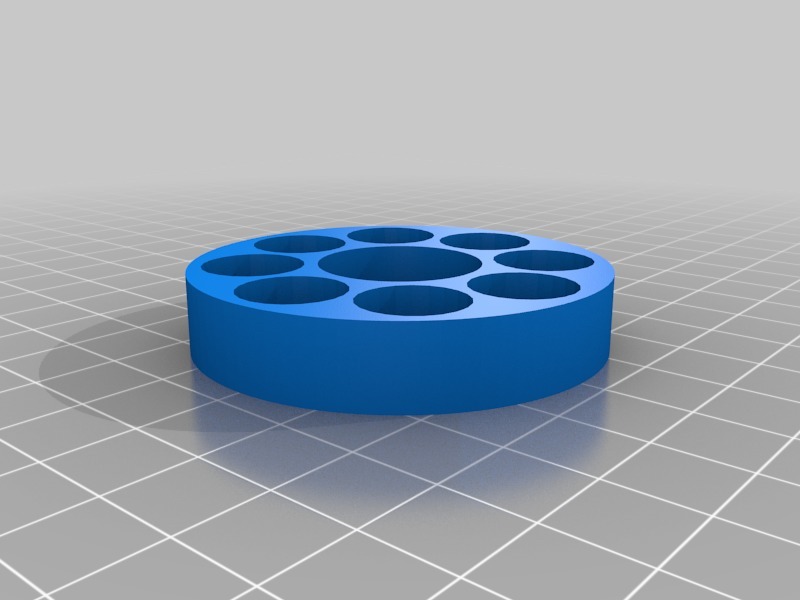

<p>My very first THING!</p> <p>It's a simple adapter for the filament spool. The STL supplied has a center hole of 21 mm diameter and an outer diameter of 53.5 mm.It fits a center pin of 20 mm and a spool diameter of 53.7 mm.</p> <p>It is only supplied as an example design, it will probably not fit your spool.</p> <p>The idea is to have a snug fit to the spool and a loose fit for the center tube.</p> <p>Be sure to measure both ends of the spool because it is not certain that they have the same diameter! On my spool they differed about 0.7 mm...</p> <p>Use tolerance of about 0.1-0.2 mm for outer diameter and 1 mm for center hole.</p> <p>Measure and change values in the OpenScad file and generate your own adapters.</p> <p>2017-09-03: New version of spooladapter.scad. Enter exact dimensions and tweak tolerances if you want to. Default tolerances set to 1.0 mm for hole and -0.2 mm för outer diameter</p> <p>2017-09-04: New versions of both scad-file and stl</p> <p>2017-09-17: Should work with Customizer too</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Tronxy P802MA</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.15</p></div> <p><strong>Infill:</strong></p> <p>10%</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>Important: Generate your own adapter using the OpenScad file!</p></div> </p></p> Category: 3D Printer Parts
