E3D V6 Mount with Fan for CTC / Flashforge / Replicator

prusaprinters

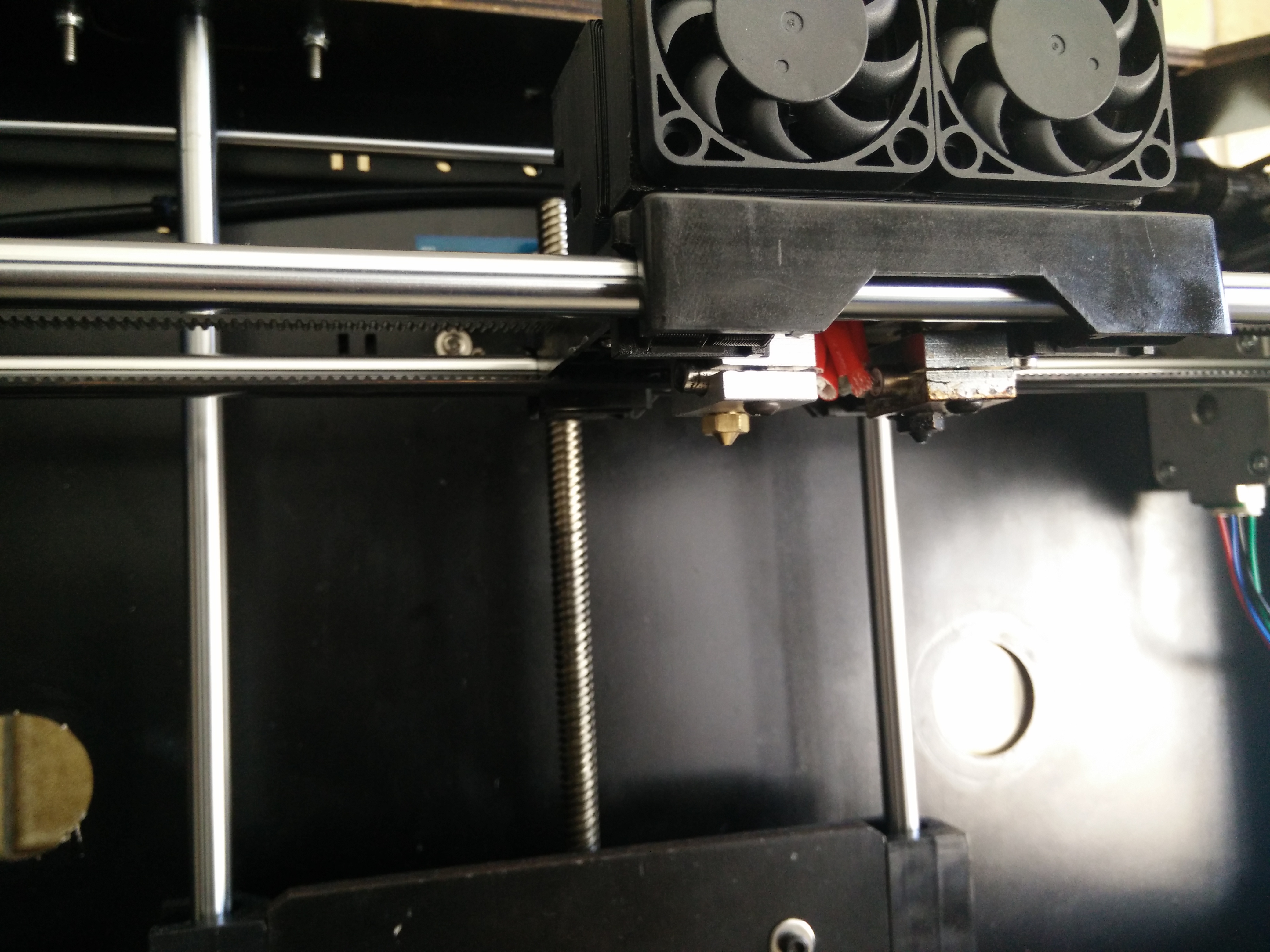

<p>I wasn't really satisfied with the available E3D V6 Mounts for my CTC, so I created my own version.<br/> There are 2 Versions available - they are all the same, but different!</p> <p>I would hardyl recommend V003 for single or V007 for dual setup.</p> <p>For assembly you will need 4 M3 nuts, 2 M3x30 screws (head-style doesn't matter, but the designs are for countersunk), 2-4 screws to mount the 40 mm fan, 2 M3x20 screws to mount the whole thing to the extruder carriage and one push-in fitting for the 4mm (OD) bowden tube.<br/> For the extruder I used the standard springloaded extruder and mounted it using the 000 parts on the back (the CTC already has the correct mounting holes).</p> <p>The current Version for a single extruder conversion is V003.<br/> The current Version for a dual extruder setup is V007 - you can choose to use my part cooler design or just use your own. The left hotend has around 1 mm play for hight-adjustment.</p> <h5>Update 07.02.2016</h5> <p>I just added a .rar with all released models as .stp-files</p> <h3>Print instructions</h3><h3>Category: 3D Printers Print Settings</h3> <p><strong>Printer:</strong> CTC 3D</p> <p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> Yes</p> <p><strong>Resolution:</strong> 0.2</p> <p><strong>Infill:</strong> 25 %, 4 Shells</p> <p><strong>Notes:</strong></p> <p>I only used support on the bridge part to keep the Mounting for the hot end smooth.</p> <h3> Post-Printing</h3> <p>The horizontal nozzle-distance is 36 mm (in Software, make sure to measure the actual value). You have to attach the extruder mount on the top-most position of the back panel of your printer - otherwise it may interfere with your spools / spool holder.</p>
