Extron MVX bracket for wire storage

prusaprinters

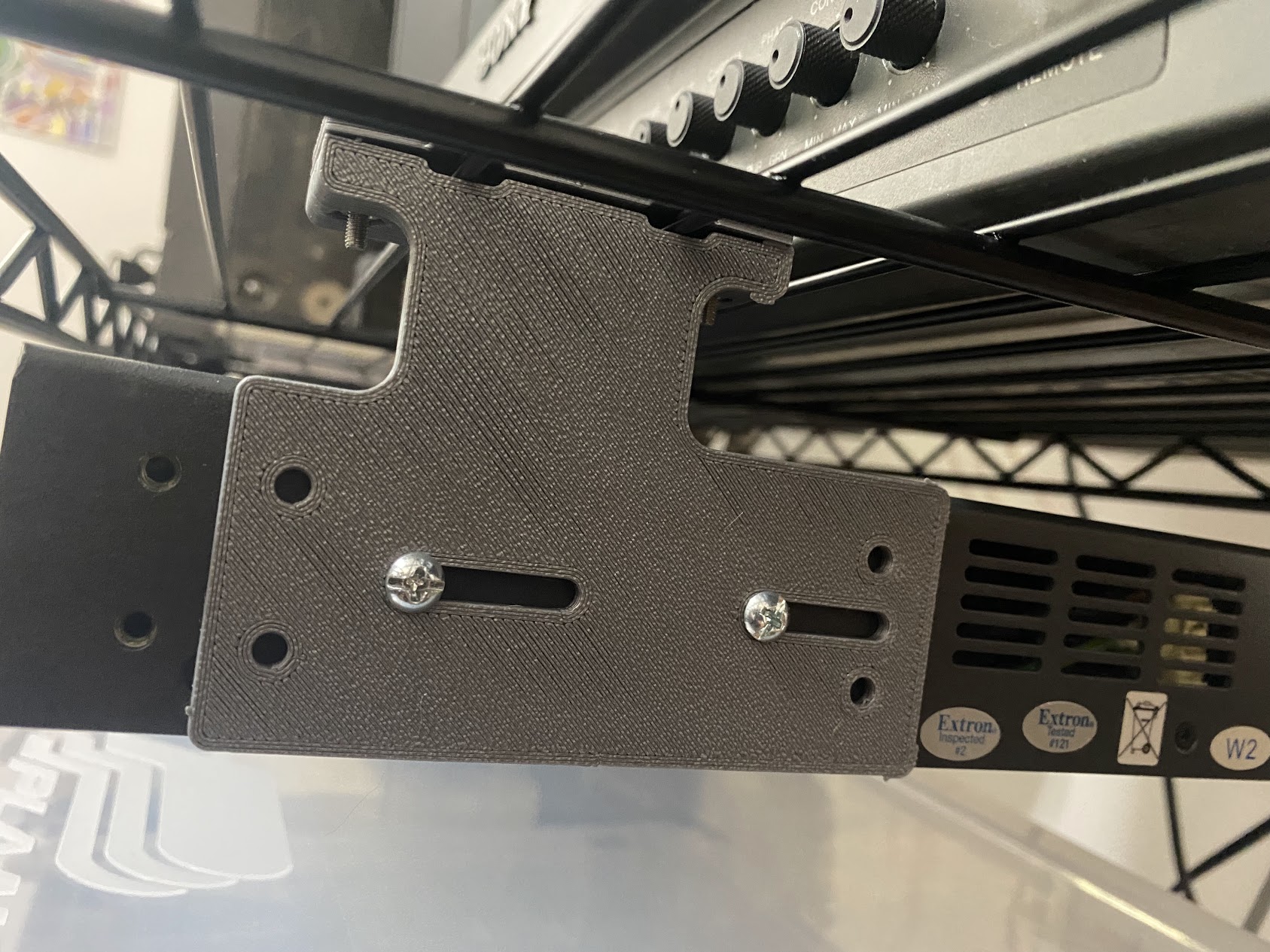

<p><i>Everyone knows that we shouldn't use it, but everyone uses the wire storage racks for the CRT collection.&nbsp;</i></p><p>This matches the holes on the Extron MVX VGA switchers, and then grabs to a standard wire rack with some screws. That way you can put the Extron up and save some space under it.</p><p>The extron uses #8 screws on the bigger holes, and I think #6 on the smallers. Since I am a normal human being, the screws for the top clamp are M3 metric. I used M3x12 machine screws but anything over 12mm will probably do. Also remember to add some nuts under.</p><p>I found it easier to attach the brackets to the rack, and then the Extron. YMMV.</p><p>Printed with 0.3mm layers, using PLA. Remember to mirror one of the sides over so you don't end with two brackets that look the same. It will work, but it won't be pretty.</p><p>I am including the <i>horrible organized</i> STEP file in case anyone needs/wants to do any alteration.</p>
