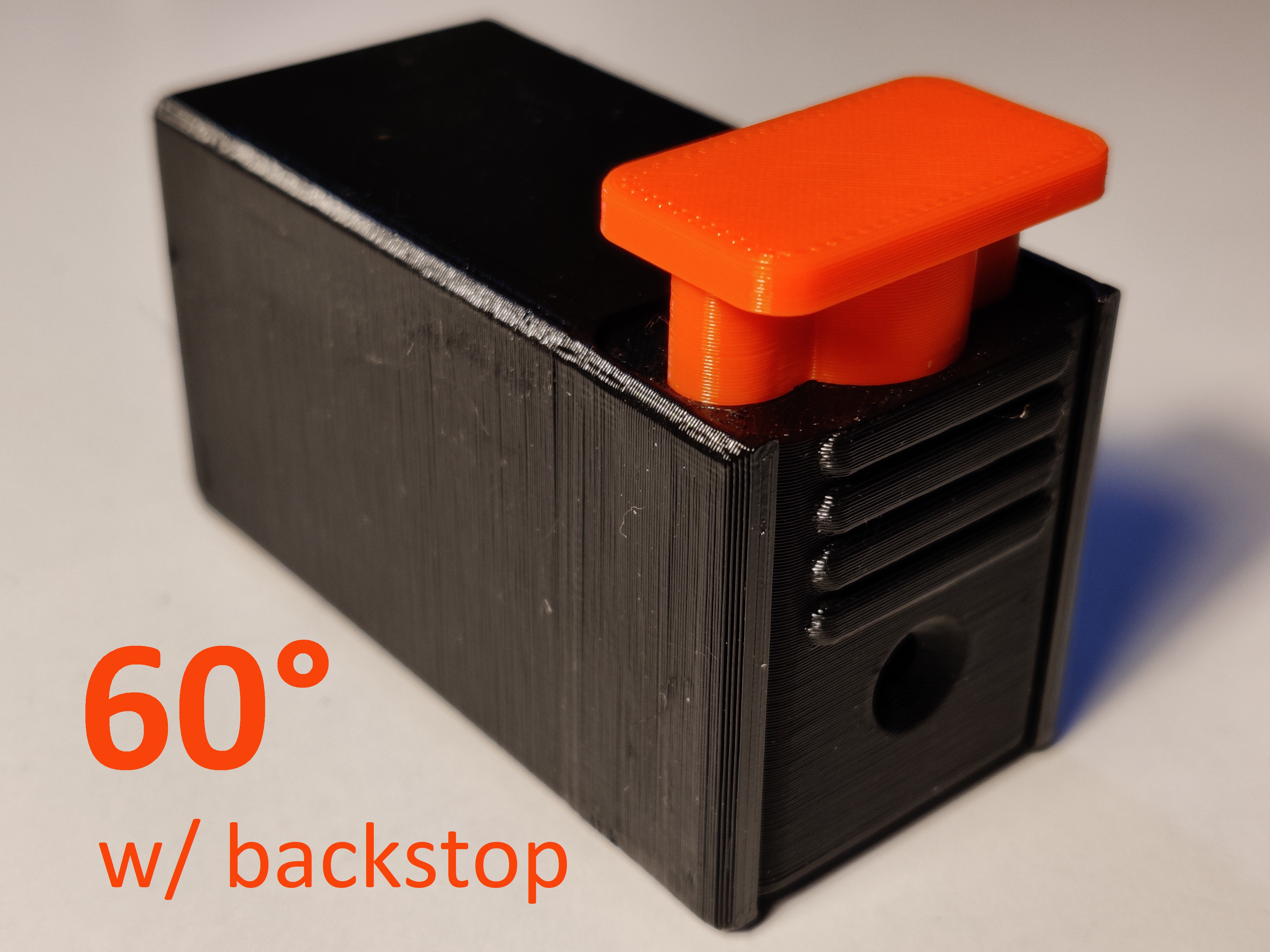

Filament cutter 60° easy to empty cutter box (with backstop)

prusaprinters

<p>One to rule them all.</p><p>I simply liked the idea of:</p><ul><li>Filament cutter tool (thanks <a href="https://www.prusaprinters.org/social/57687-pomi"><strong>Pomi</strong></a>)</li><li>Sharper point cutter tool (60<a href="https://www.degreesymbol.net/">°</a>, thanks <a href="https://www.prusaprinters.org/social/155797-kk"><strong>kk</strong></a>)</li><li>That it could catch the leftovers (thanks <a href="https://www.prusaprinters.org/social/6251-wapameepto"><strong>Wapameepto</strong></a>)</li><li>But without wasting too much (thanks <a href="https://www.prusaprinters.org/social/141122-iil"><strong>-IIl</strong></a>)</li><li>And it had to be easy to remove when necessary (thanks <a href="https://www.prusaprinters.org/social/48520-fuchsr"><strong>fuchsr</strong></a>)</li></ul><p>&nbsp;</p><h4><strong>Assembly instructions (copied from Pomi's Filament Cutter):</strong></h4><ol><li>Print both parts (top and bottom)</li><li>Take one piece of snap-off blade and put it into upper part. Use some pliers to avoid an injury. There is a small mark near blade pocket which shows you where the tip of the blade should be. Additionally you can use super glue to fix it in position.</li><li>Put both screws into the holes.</li><li>Put ball pen springs into the holes.</li><li>Place the upper part on the main body and press it fully.</li><li>Tighten the screws. Screw head should be about 1,5 mm inside head holes. If you will tight them too much it will destroy plate at the upper part.</li><li>Release upper part and check if blade is not visible inside the filament hole. If yes loose the screws little bit.</li><li>I recommend to put some lubricant inside to keep the mechanism running smoothly.</li></ol><p>&nbsp;</p><p>Long live the remixes.</p>
