GearedHinge with Screws easier to print
prusaprinters

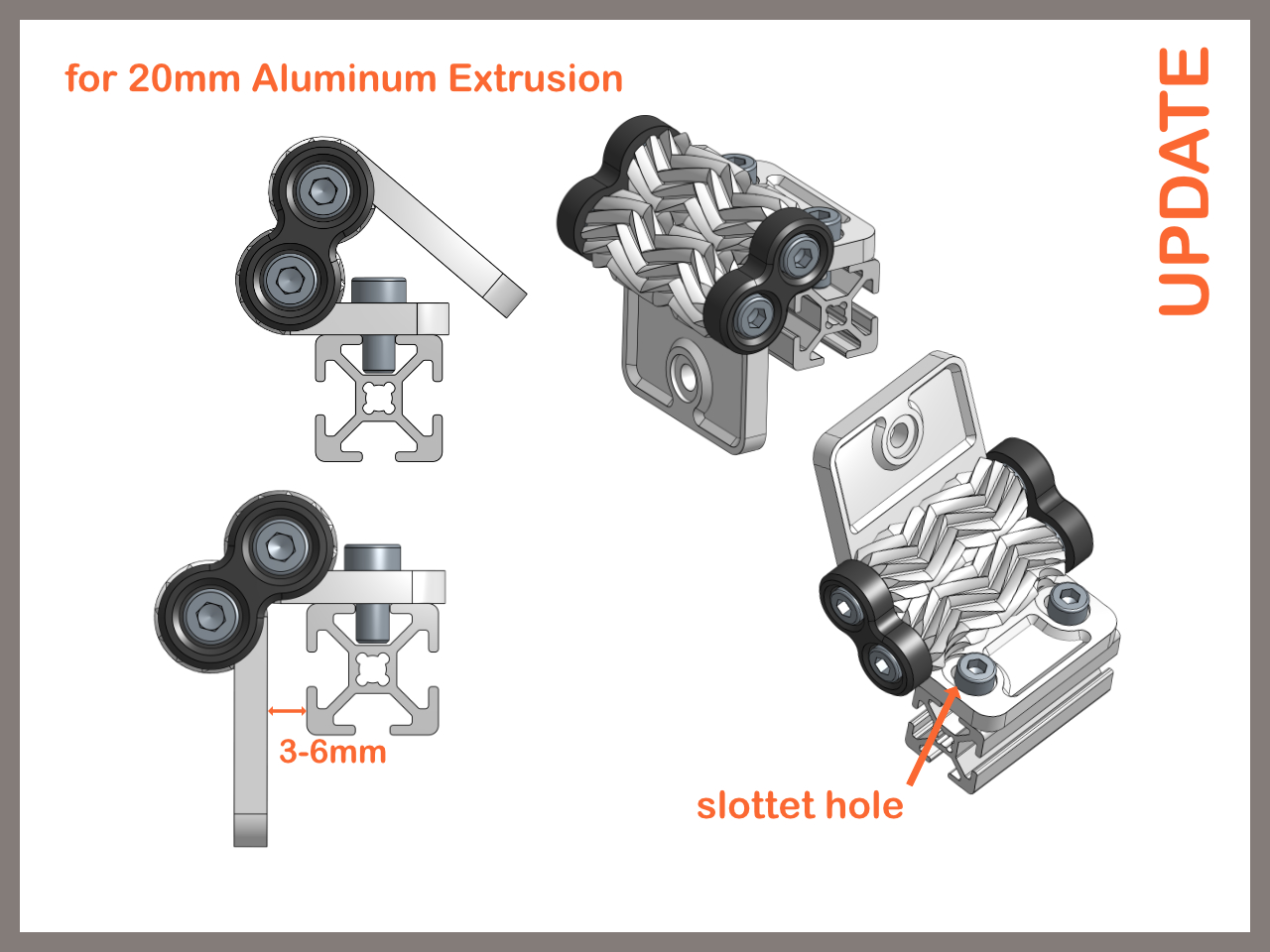

<p>I uploaded my customized version and a “clean” version for customizing. Also added step files.</p><p> </p><p><strong>For assembly you need:</strong></p><p>2x M5x55 Cylinder Head Screws </p><p>4x M5x15mm Washer</p><p>2x M5 Nut</p><p> </p><p><strong>For mounting on 20x20mm Aluminum Extrusion:</strong></p><p>2x M5x10 <strong>or</strong> 2x M5x8 Cylinder Head Screws</p><p>and last but not least the screw, washer, nut for your door.</p><p> </p><p><br>I think it can take a fair bit more torque than the original version, has a larger spread angle, and is easier to print.</p><p> </p><p> </p>
