Honkler Magnet

prusaprinters

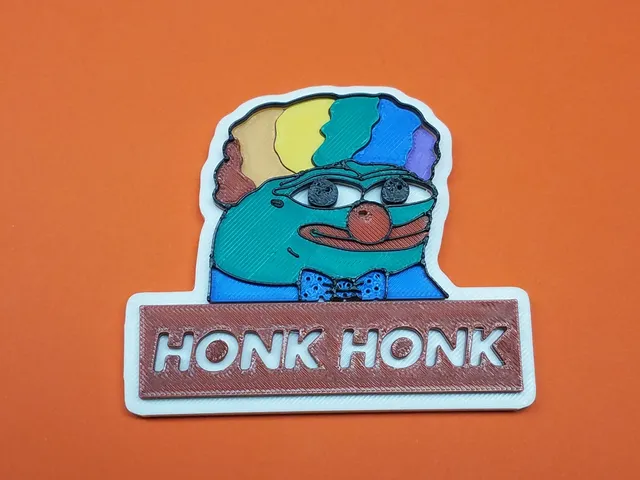

Summary:Honkler/Clown World refrigerator  magnet with no MMU/AMS needed for multiple colors, simply pause on layers to change filament. Magnet measures about 3.5"x3" (88mmx75mm) WxH. Print settings:PLA, 0.4 nozzle, 0.2 layers, 2 walls, 10% gyroid infill, classic wall,  detect thin walls turned on, optional ironing. I also prefer a smooth build plate for magnets. Magnets:Designed for three 6x3 magnets. My magnets actual measurement was 6.0mmx2.7mm so the magnet hole is 6.3x3.2. I paused on the top magnet cavity layer and super glued the magnets in before resuming the print. Filament changes:Color order for filament changes: white, purple, orange, yellow, blue, red, green, blackIf you stick with 0.2 layer heights: Layer 19 - Insert MagnetsLayer 24 - Change White to PurpleLayer 27 - Change Purple to OrangeLayer 30 - Change Orange to YellowLayer 33 - Change Yellow to BlueLayer 36 - Change Blue to RedLayer 39 - Change Red to GreenLayer 42 - Change Green to Black*Be sure to double check your slicer for layer pauses
