K8200/3Drag Fliament Guide ClipOn with Bearing
prusaprinters

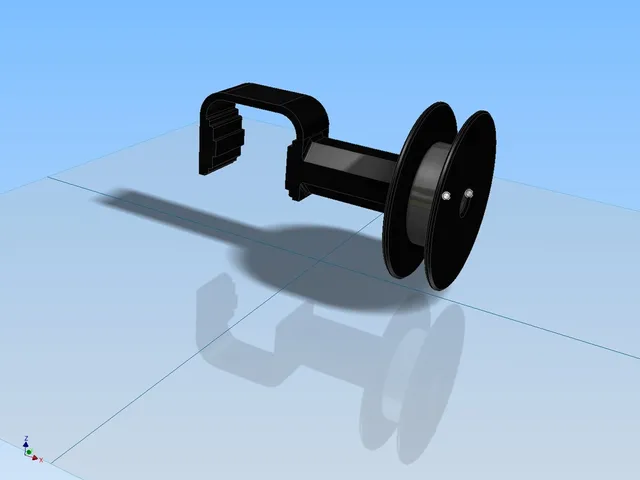

K8200 and 3Drag filament guide with one bearing. The parts can be printed, except for the bearing and the countersink wood/plastic screw 3x25mm.Update:Version for both bearing 6000ZZ and 608ZZ (skateboard bearing).The larger bearing is preferred as it gives less bend on the filament when tightened.>> If you like it, please leave a like, rating or a tip... :)Print Settings0.20mm layer height, 20% infill2 perimeters, 3 top and 2 bottom layersNo support neededInstructionsYou need:1x 3x25mm countersink plastic/wood screw1x Bearing 6000ZZ 26x8x10mm (DIN 625) or1x Bearing 608ZZ 22x7x8mm (DIN 625, skateboard) Picture shows exploded view for assembly.>> If you like the model, please leave a like, a make or a rating… ;-)
