Lazy Suzanne/turntable horizontal spool holder

prusaprinters

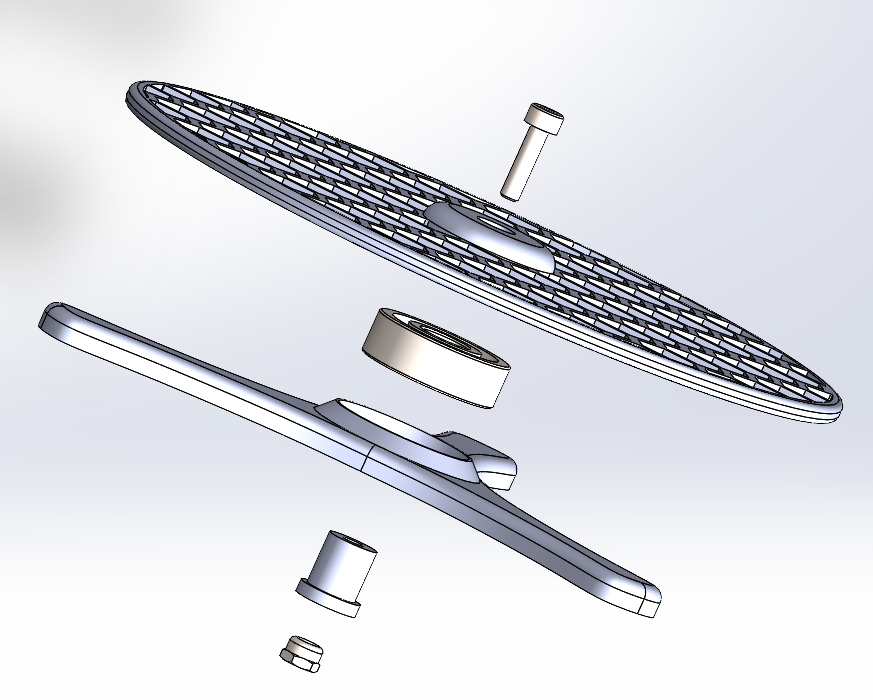

<p>From my experience, only Prusament rolls fit properly in the grooves under the Mini. And even then, it doesn't turn super smoothly.</p><p>I made this lazy Suzanne so that I can use it with any filament brand, no matter how wide the center hole is (Hello Eono with your massive 10cm center holes!)</p><p>I designed it to only require parts from the Mini's spare bag so there is no need to wait 3 months for that Aliexpress order to arrive: it uses a 608Z bearing (from the original filament spool holder that came with the printer), a 12mm M3 screw (look in your spares bag), and an M3 nut (either Nylock or just the plain, slimmer variety).</p><p>I added little hexagons all over the tray to save on plastic and keep with the Prusa theme from the Mini base.</p><p><strong>Note that for the tray and for the axis, I am using a sacrificial layer so that the holes print well without needing supports. Once the print is done, simply punch the layer obstructing the screw holes (either with an allen key, a screw, or an exacto knife).</strong></p><p>As usual, STEP files included for easier remixes.</p><p><strong>I recommend using the supplied 3mf file as it contains the correct settings and orientation for optimal printing.</strong></p>
