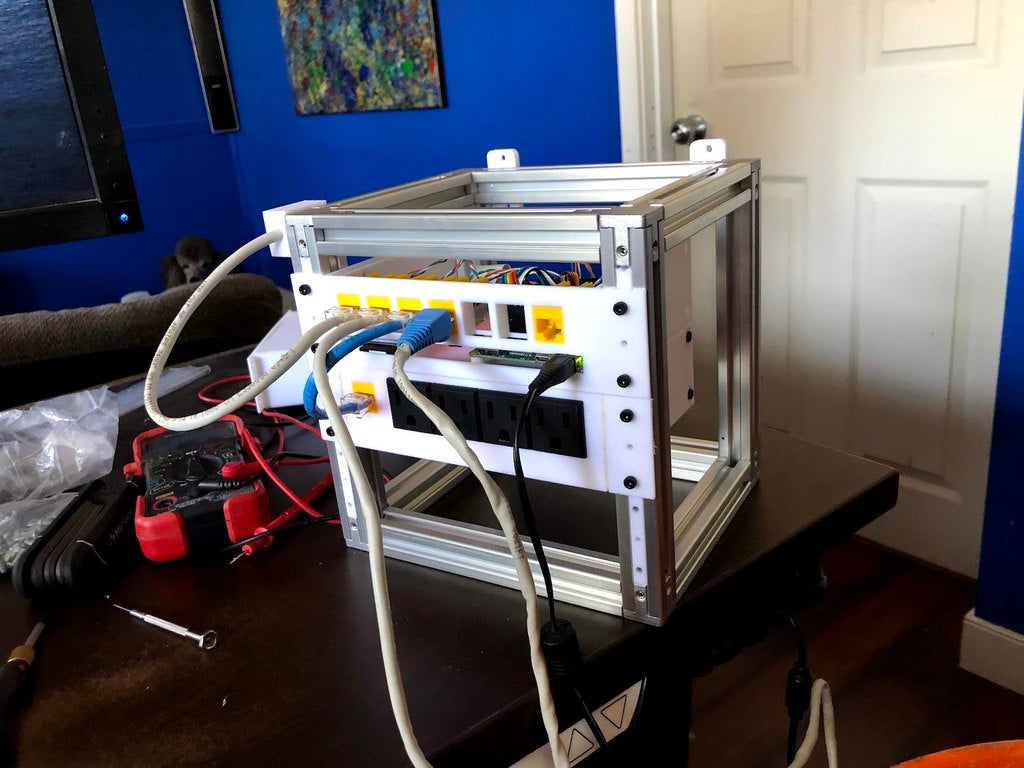

Mini-Rack Enclosure System for Raspi

prusaprinters

<h3> Work in progress. Part of a Hydroponic Control system.</h3> <p>Developed this independently, but have come across a bit <a href="https://www.thingiverse.com/thing:1936196">better execution of the concept</a>.</p> <h3> Misc Notes</h3> <ul> <li>Uses 2020 extruded aluminum for the Mini-Rack</li> <li>Mount holes are for a Raspi Zero</li> <li>SD Extender cable used so can front-load the SD card</li> <li>Fusion f3z &amp; STEP files included Mini-Rack Parts</li> </ul> <hr/> <ul> <li>4x 170mm</li> <li>4x 120mm</li> <li>4x 152mm</li> <li>8x 2020 End Corner Bracket <a href="https://www.amazon.com?linkCode=ll2&amp;tag=thingiverse09-20&amp;linkId=e4759bff1fa9a55a0f897d801ce2d765&amp;language=en_US&amp;ref_=as_li_ss_tl"> </a><a href="https://www.amazon.com?linkCode=ll2&amp;tag=thingiverse09-20&amp;linkId=e4759bff1fa9a55a0f897d801ce2d765&amp;language=en_US&amp;ref_=as_li_ss_tl"> Amazon</a> Parts</li> </ul> <hr/> <ul> <li><a href="https://www.amazon.ca/gp/product/B078RHDTFZ?tag=thingiverse09-20">IEC 320 C14 Socket</a></li> <li><a href="https://www.amazon.ca/gp/product/B08C9FDLCY?tag=thingiverse09-20">2020 End Corner Bracket Connector</a></li> <li><a href="https://www.amazon.ca/gp/product/B07JMTW1YD?tag=thingiverse09-20">Micro SD to SD Card Extension Cable Extender</a></li> <li><a href="https://www.amazon.ca/gp/product/B078S17FZ5?tag=thingiverse09-20">US 3 Pins Power Socket Plug Panel</a></li> <li><a href="https://www.amazon.ca/gp/product/B00W97RY2O?tag=thingiverse09-20">8mm Alloy Steel Hex Bolt Socket Head Cap Screws Black 100 Pcs</a></li> <li><a href="https://www.amazon.ca/gp/product/B06XCKQ1M9?tag=thingiverse09-20">ELEGOO 4 Channel DC 5V Relay Module</a></li> </ul> Category: Electronics
