MK3S LED Holder with Filament Guide

prusaprinters

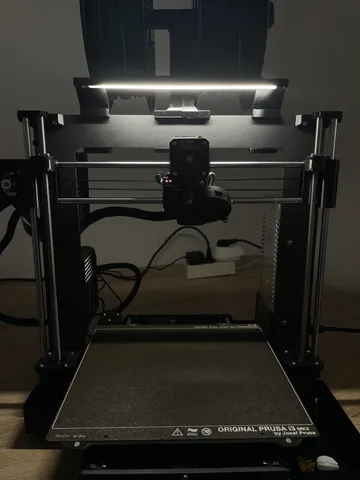

Remix of Nils Kal's LED lightbar paired with some other models.I have created a remix because I still had an unused 24V LED bar. It is this model from Amazon. This lightbar has an on/off switch, the light is dimmable and the light is nicely diffused. Because I did not want to open the switch I needed a customized version of Nils Kal's lightbar. The model can be printed without any problems, it just needs to be rotated. It is best to use the GCODE, I have printed it with it a total of 3x in both PETG and PLA. I tried with 15-30% infill but didn't notice much difference. Also it is clean printable in 0.3mm.The connection is made directly at the mainboard, 2 cable lugs are needed. If the original mainboard case is used, the cable can be passed through the opening at the upper hinge without any problems. The switch is fixed behind the frame and the cable can be fixed by cable clips, but this is not necessary for me because it goes tightly down.I've updated the model with a better filament guide and a small holder for the end of a filament.
