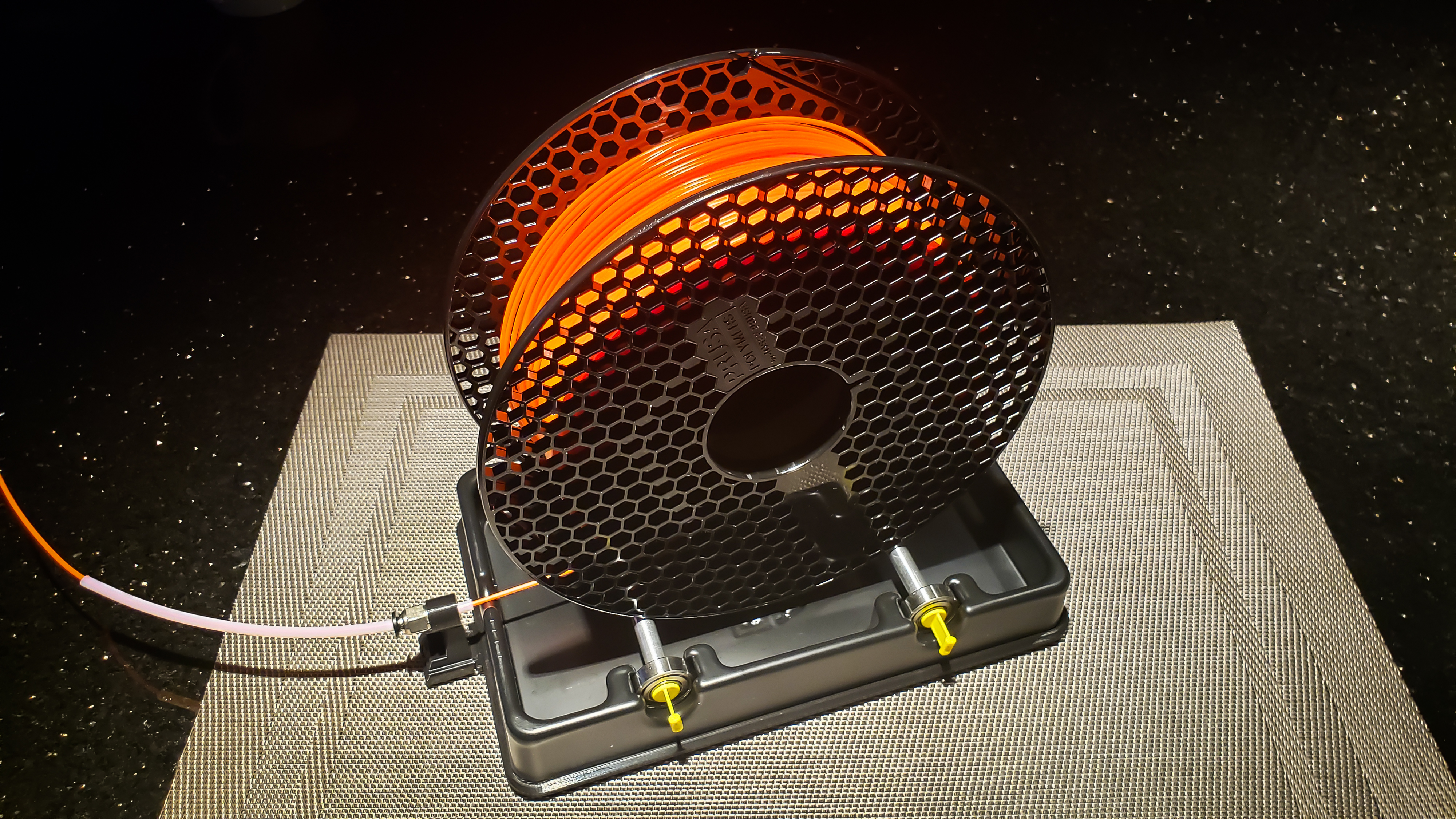

MMU2S Filament Spool Holder Base with Articulating PC4-M10 Guide

prusaprinters

<p>I designed this spool holder base to cover the following criteria:</p><ol><li>Non-slip.</li><li>Reduce sliding of the spool holder on top of the Lack enclosure which has been creating scratch marks on the top.</li><li>Articulating PC4-M10 joint to allow the PTFE tubing to align with the filament on the spool.</li><li>Allow for the downward position of the PTFE tubing.</li><li>Use only the base by removing the PTFE connection if not required.</li></ol><p>The base and the PC4-M10 require supports. This is very easy to do if you use the paint-on supports, Smart fill, Smart fill angle set to 0°.&nbsp;</p><p>The base is printed with PLA at 0.20mm layer quality, 15% Grid Infill, For support enforcers only selected.</p><p>The PC4-M10 support (filament guide) is printed with PLA at 0.20mm layer quality, 15% Grid Infill, For support enforcers only selected. If the clip is added together as shown, it is printed with Infill modifier set to 30% Grid.</p><p>All prints are done with a 0.4mm nozzle.</p><p>The articulating joint is print-in-place. If you want it to articulate, you will need to firmly rotate the joint to break it free.</p><p>The filament guide slides onto the clip and snaps into place. The filament guide/clip slides into the base and held in place by a screw or left off if the base is all that is required.</p><p>In addition to the printed parts, you will need one (1) M3x6 flat head screw and four (4) 3/8" round adhesive rubber pads.</p>
