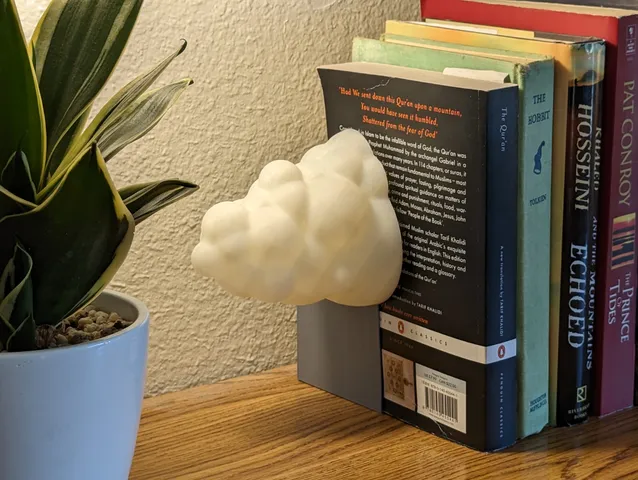

[OLD VERSION] Floating Cloud Bookend
prusaprinters
I have now posted a V2 of this design, please refer to my profile page to find it.This model is designed to print without supports! I recommend printing the cloud pieces with the flat side down, and the bracket pieces with the triangle cutout on the buildplate. The thickness of the bracket piece is 1.2mm, which should allow for exactly three passes with a 0.4mm nozzle, or two passes with a 0.6mm nozzle. Make sure to adjust your wall count settings to match your nozzle size before printing. You will need two screws per side to attach the cloud pieces to the brackets. I used 8mm M4 screws, which worked great!
