OneUp / TwoUp / ThreeUp X-Axis Endstop Holder

pinshape

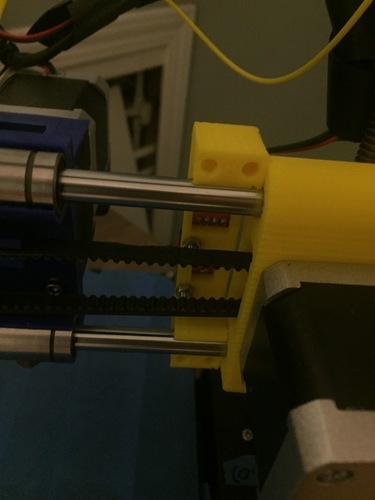

I whipped this together based on other x-axis endstop holders/mounts I've seen around for other printers, but tailored it to work with my customized ThreeUp. Most other x-axis endstop designs rely on still having the gantry or other "factory" parts I've already swapped out. Note: The curved ends intended to snap onto steel rods both broke a little when I tried to snap them into place, but mine still snaps in place even though some material broke off. If that happens to you, don't panic; it will likely still function. I added holes at the top and bottom for bolts, zip ties, or whatever else you may need to ensure it stays in place. Luckily, mine doesn't need additional support right now, but they're there if you need them. Printer: ThreeUp v2 Rafts: None Supports: Yes Resolution: 0.2mm Infill: 20% Honeycomb Notes: Supports set at 30 degrees; 1.75mm filament; max speed 50; 196C/194C first layer/other layers; 6 perimeter layers; took about 50 minutes.
