Organizer in Modular Grid

prusaprinters

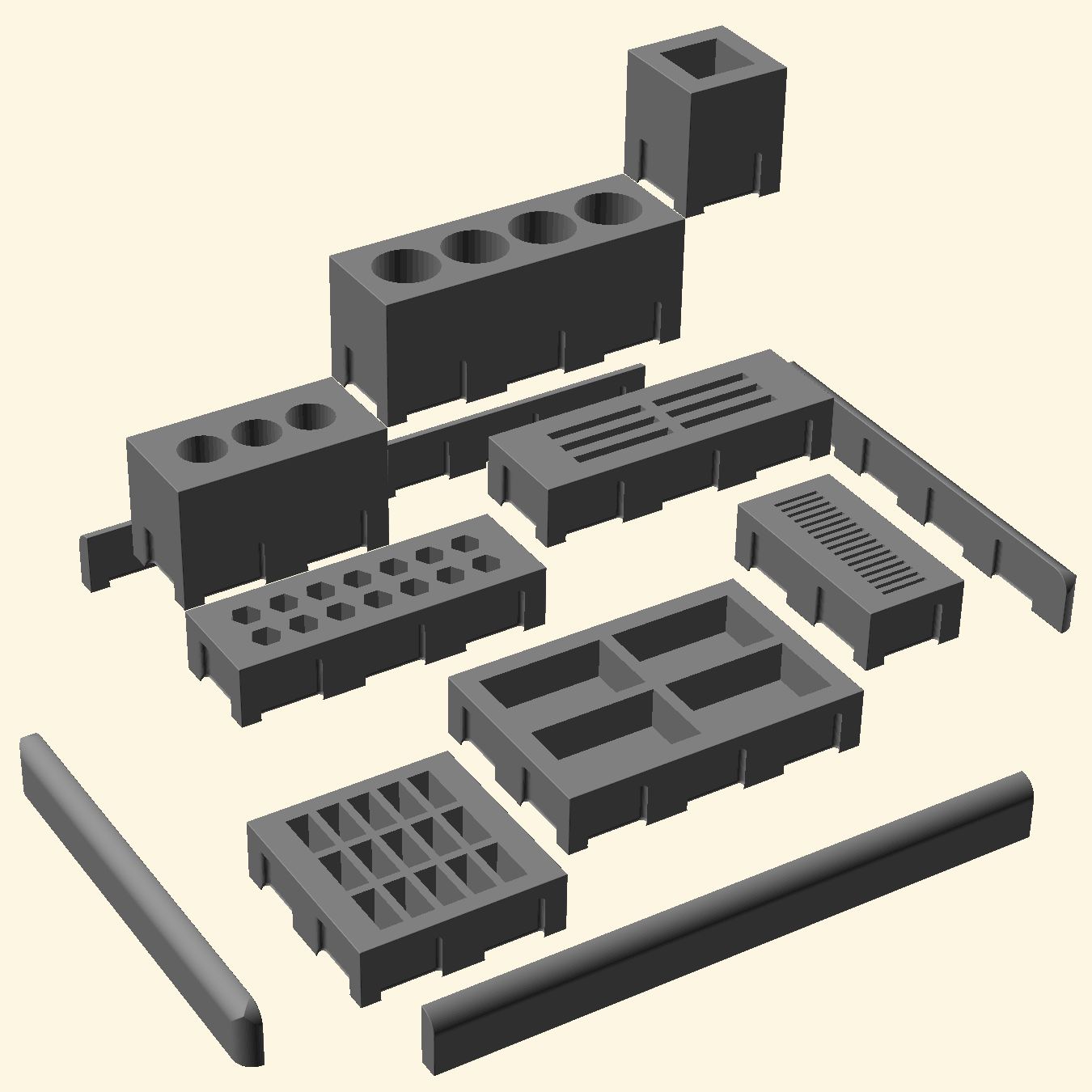

<p>This is a set of highly customizable, expandable and modular trays to create your own desk tray or wall-mounted tray. Each module is<br>purpose-built to store a specific item, but by mixing and matching, one can create a personal combination of the required storage.&nbsp;<br>If this turns out to be insufficent in the future, items can be easily replaced and reused.&nbsp;<br><br>The grid is a 25mm x 25mm grid, where each module can occupy 1 or more grid squares in each direction. The height of each unit is 15<br>mm and some modules can be stretched in this direction as well.&nbsp;<br><br>Currently, the following storage options are available:&nbsp;<br>- SD Cards&nbsp;<br>- Micro SD Cards&nbsp;<br>- USB sticks&nbsp;<br>- Batteries (AA and AAA)&nbsp;<br>- Screw bits (hex)&nbsp;<br>- Generic trays&nbsp;<br><br>Furthermore, borders can be added for a finished look.</p><p>Source files can be found on https://gitlab.com/jeroenrnl/omg<br>&nbsp;</p><p>If you have any ideas for addition, please create an issue on Gitlab or fork this project, create your own addition and create a merge request. <strong>Provide measurements in mm only</strong>.</p><p>&nbsp;</p><p>Update 2022/09/17:</p><ul><li>Fixed an issue where the corner of some edge blocks were missing</li><li>Noticed that the Gitlab page was set to private - it's now public<br><br><br>&nbsp;</li></ul>
