Parametric dovetail generator for OpenScad

prusaprinters

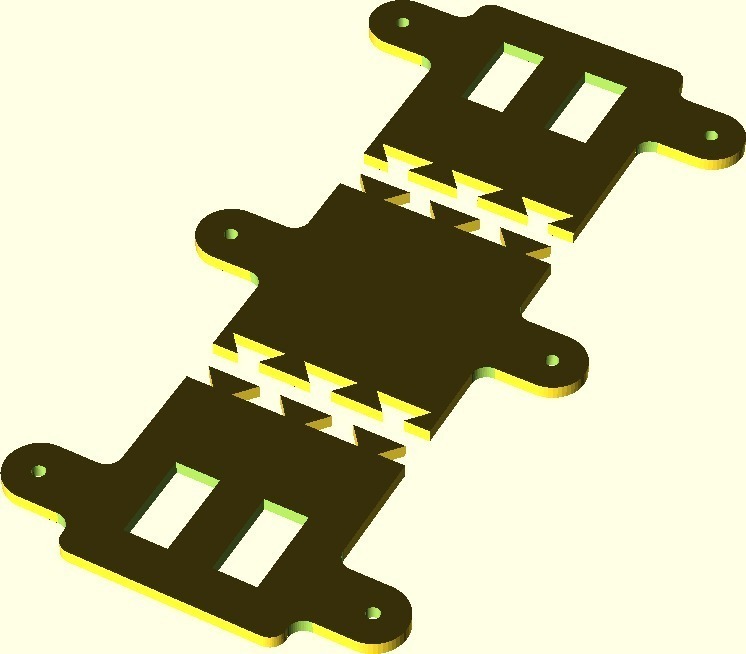

<p>Create parametric dovetail.</p><p>You want to print a OpenSCAD design too large for your 3D printer ?</p><p>Try to cut them with a dovetail !</p><p>Updated version : <a href="https://github.com/hugokernel/OpenSCAD_Dovetail">https://github.com/hugokernel/OpenSCAD\_Dovetail</a></p><h3>Example</h3><pre><code class="language-plaintext">// Your amazing design you want to cut module amazing_design() { cube(size=[50, 50, 10], center=true); } // First, setup the cutting position: middle cut position = [0, 0, 0]; // Next, setup the dimension of the cut: use the bounding box of your design dimension = [50, 50, 10]; // Finally, setup the dovetail: // - Teeth count // - Teeth height // - Teeth Clearance teeth = [5, 8, 0.5]; // Now, cut ! // Extract the first part... intersection() { amazing_design(); cutter(position=[0, 0, 0], dimension=dimension, teeths=teeth, male=true); } // ... and the second part intersection() { amazing_design(); cutter(position=[0, 0, 0], dimension=dimension, teeths=teeth, male=false); }</code></pre><p>Category: Other</p>
