Parametric Milling Cutter Storage Box

prusaprinters

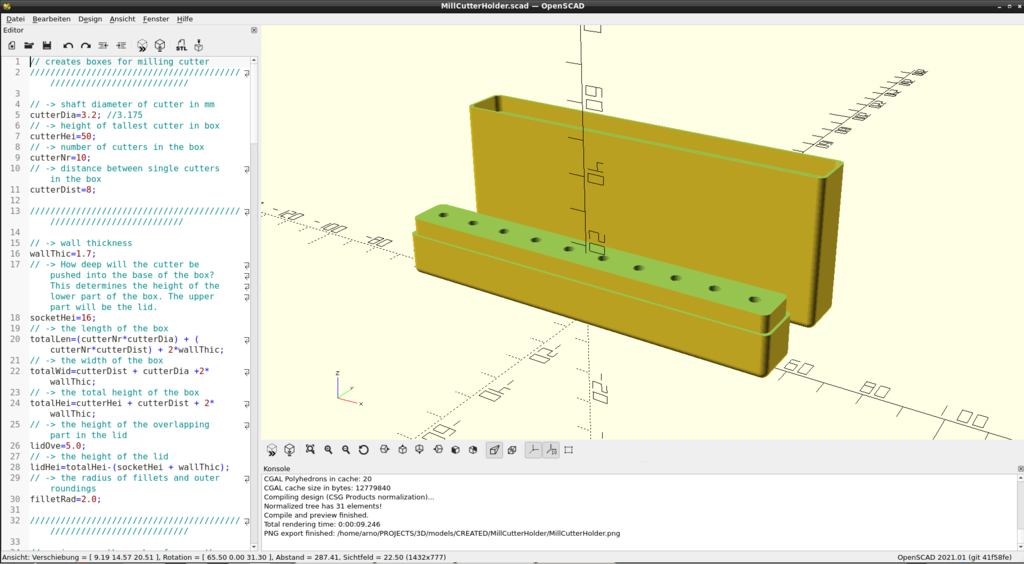

<p>For the CNC machine I am going to build I needed some milling cutter holders. Therefore I remixed the "Pluggable Containers" thing in order to be able to adapt the box to different numbers and shaft diameters of various milling cutters.<br/> The provided stl file is for 10 milling cutters with a shaft diameter of 3.175 millimeters (1/8") and a maximum length of 50 milimeters.</p> <p>The .scad file lets you adapt the design to your needs.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK2S</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.15</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>20% Gyroid</p></div><br/> <strong>Filament:</strong><br/> Prusa PETG PETG Cyan <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>4 Perimetes at a wall thickness of 1,70 mm</p></div></p> </p></p></p> Category: Tool Holders &amp; Boxes
