Prusa MINI LED holder with two mounting points

prusaprinters

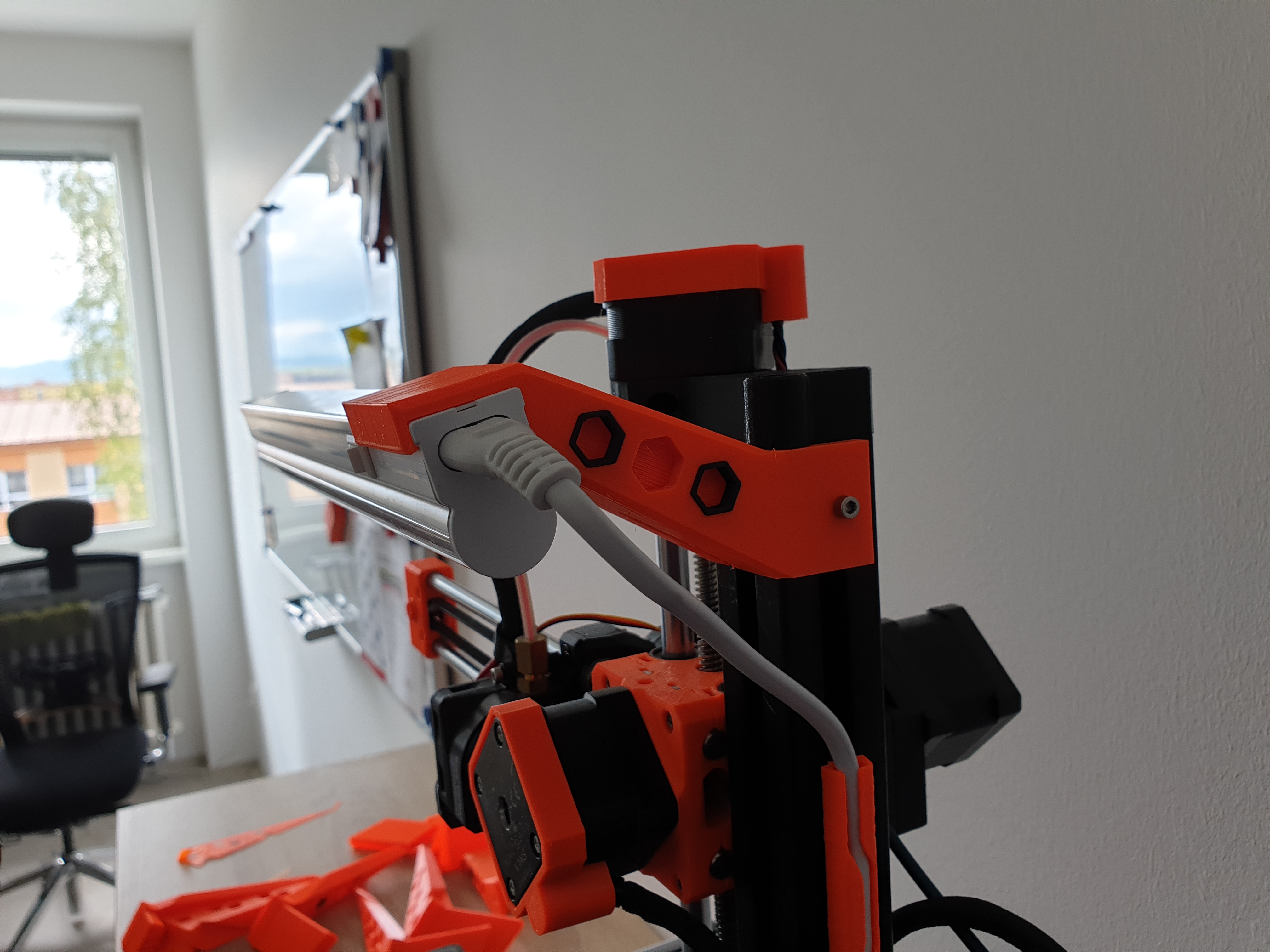

<p>I needed a holder for more heavy LED light (kitchen/work model)<br><a href="https://www.alza.cz/emos-led-osvetleni-lista-300mm-5w-d5111135.htm">https://www.alza.cz/emos-led-osvetleni-lista-300mm-5w-d5111135.htm</a><br>I remixed a holder from <strong>Mr.Baham</strong> to be more robust and have longer "clamp". But when I added Base leg, I realised the vibration is too much and I need a second mounting point to secure it in place. So I remixed my remix, creating sturdier holder which you can mount with two screws.</p><p>The clamp size is 23x4,5mm. I believe the size should be universal for this type of light.</p><h3>Print instructions</h3><p>I printed mine in Prusament Orange PETG in 0,2mm layer height. You will need supports for the slot, just use the 3MF file with added enforcer.</p><h3>Assembly</h3><p>I used T-nut from 3Dprintedgr to mount it to my printer, using screw and nut from printer spare parts. (M3x12)<br><a href="https://www.prusaprinters.org/prints/45082">https://www.prusaprinters.org/prints/45082</a></p>
