Prusa Protective Shield 6pcs Stack Vase Mode ReRemix

prusaprinters

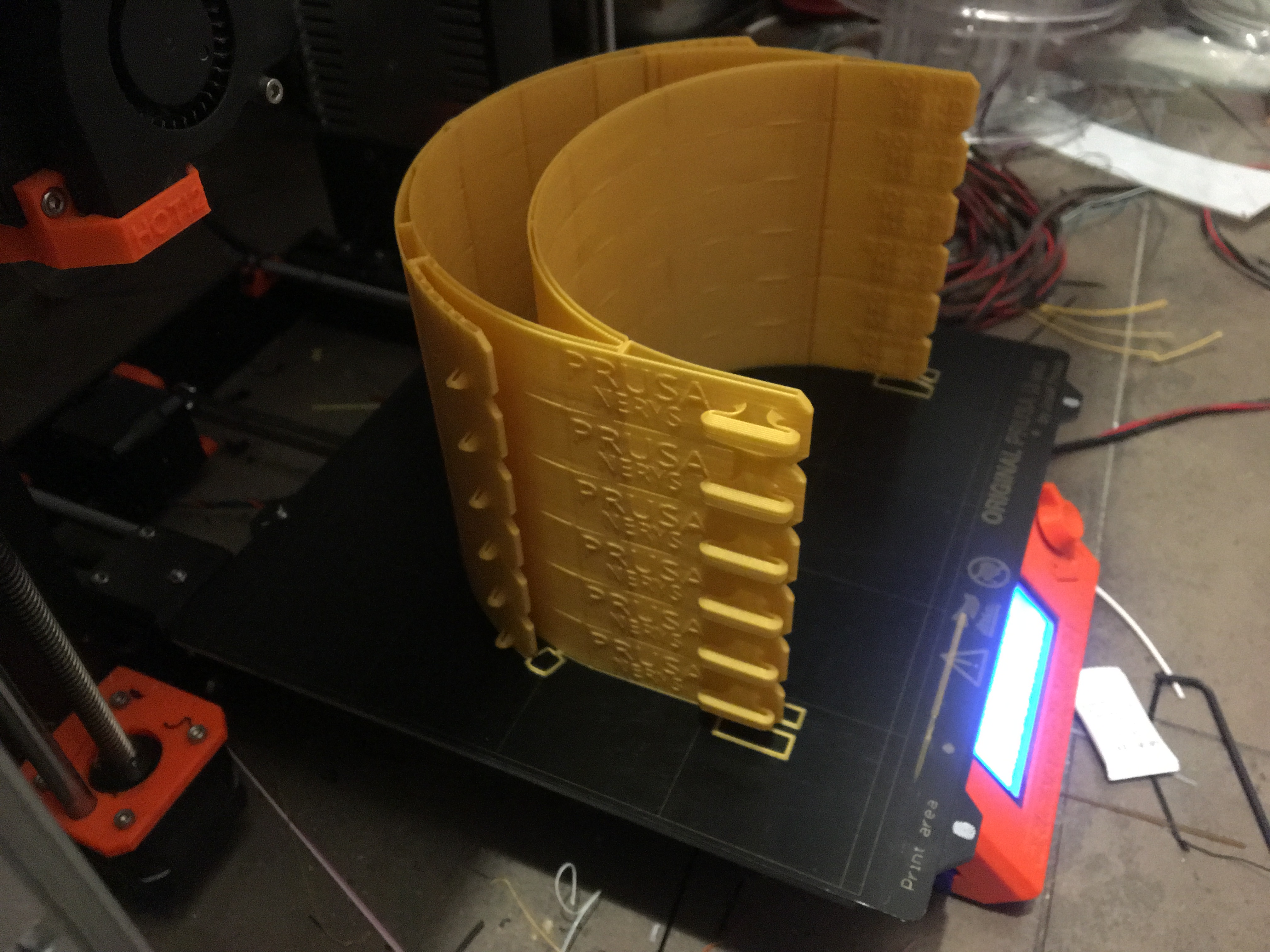

<p>This is modifed version of the initial vase mode design. Primary goal was to reduce print times and plastic use for PLA disposable printing... This design compared to RC2 uses 3 to 4 times less plastic and is usable... It is much improved vase version improving strength and printability, providing stack of 6 shields with separation layers. 4 pins for the front transparent shield were optimized for overhangs. Some errors in design were fixed where original vase print would break in critical points.</p> <p><strong>Currently this prints reliably only with 0.4 and 0.6 nozzle...</strong><br/> Please use <strong>PV_06N_9Pc</strong> for 0.6 nozzle <strong>stack of 9 print in 4 hours</strong>...</p> <p>We are currently printing this with Prusas i3 MK3, Creality Ender-5 and Ultimaker 2 printers... It is proven to work on those however some modifications in print profiles...</p> <p>If you have questions about design or you have some suggestions please feel free to message us through our Facebook page:</p> <p><a href="https://facebook.com/robothandmade">https://facebook.com/robothandmade</a></p> <p>Demo:<br/> <figure class="media"> <oembed url="https://youtu.be/ySj7fDHvFes"></oembed> </figure> </p> <h3>Print instructions</h3><p><strong>Currently this prints with 0.4 and 0.6 nozzle...</strong></p> <p><strong>For 0.6 nozzle use PV_06N_9Pc design!</strong></p> <p>Print is designed to work with <strong>0.4 nozzle</strong> and gcodes provided are sliced for it and these are settings:</p> <p><strong>Spiralize (Vase Mode)</strong><br/> <strong>Layer Height:</strong> 0.3 mm<br/> <strong>Extrusion Width:</strong> 0.5 mm<br/> <strong>Speed:</strong> 65 mm/s<br/> <strong>Extrusion Multiplyer:</strong> 1.2<br/> <strong>Infill:</strong> 0%<br/> <strong>Top Layers:</strong> 0<br/> <strong>Bottom Layers:</strong> 0</p> <p>Here is pdf containing screenshots of my Prusa Slicer settings:<br/> <a href="https://drive.google.com/open?id=1J5wHbLSvWswB2hdo3-NDVavnkH4aArLl">https://drive.google.com/open?id=1J5wHbLSvWswB2hdo3-NDVavnkH4aArLl</a></p>
