Prusa RC3 Face Shield TPU Strap v8 - One Size Fits All

prusaprinters

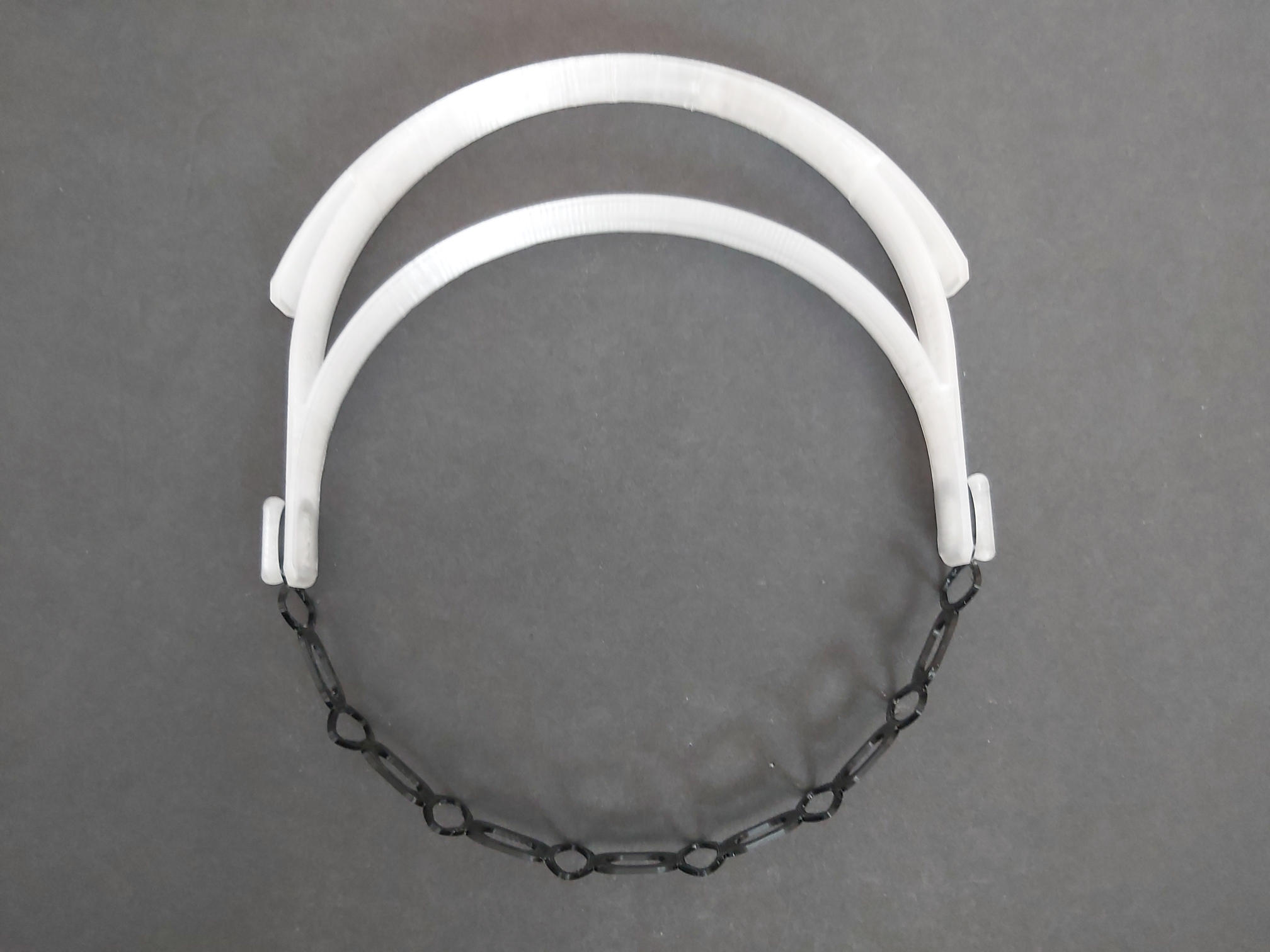

<p>This is a one-size-fits-all TPU strap for the Prusa RC3 Face Shield model.</p> <p>It is 273x30x1.5mm, so it will fit on any 30cm or larger print bed without having to print at an angle. Takes roughly 30 minutes to print with the settings listed below and uses ~6g of material.</p> <p>Comes off printer 273mm long, stretches to 400+mm.</p> <p>Connect strap to mask using thicker holes.</p> <p>Pick the size that fits. Use the stretch of the material to ensure a comfortable but snug fit.</p> <p>I am unable to break the strap with my arms but if you'd like to make it even stronger, scale up the Z axis in your slicer and print it thicker.</p> <p>This is removable and reusable; depending on regulations/procedures and whether you have the appropriate cleaning materials/facilities on hand.</p> <p><strong>NOTE: DIFFERENT TPU BRANDS, FORUMULATIONS, COLOURS, AGES, ROLLS WITHIN THE SAME BATCH, AND EVEN PARTS OF THE SAME ROLL MAY HAVE DIFFERENT CHEMICAL AND/OR PHYSICAL PROPERTIES. DO NOT USE THIS FOR PPE WITHOUT TESTING IT FIRST</strong></p> <h3>Print instructions</h3><p>Material: TPU</p> <p>Brand: Priline</p> <p>Adhesion: Skirt, 3 lines at 2mm</p> <p>Supports: No</p> <p>Infill: 100%</p> <p>Top Thickness: 2mm</p> <p>Bottom Thickness: 2mm</p> <p>Vertical Thickness: 2mm</p> <p>Printing surface: Heated glass bed with 2 layers of Elmer's All-Purpose glue stick</p> <p>Initial layer nozzle temp: 240C</p> <p>Nozzle temp: 240C</p> <p>Nozzle size: 0.6mm</p> <p>Initial layer bed temp: 75C</p> <p>Bed temp: 75C</p> <p>Initial layer fan: 0%</p> <p>Fan: 100%</p> <p>Initial layer thickness: 0.25mm</p> <p>Layer thickness: 0.2mm</p> <p>Initial layer extrusion: 105%</p> <p>Extrusion: 105%</p> <p>Initial layer speed: 20mm/s</p> <p>Speed: 20mm/</p> <p>Ironing: No</p> <p>Notes:</p> <p>Wait for bed to cool by at least 15C before removing. Allow material to cool to room temperature before using.</p> <p><strong>NOTE: DIFFERENT TPU BRANDS, FORUMULATIONS, COLOURS, AGES, ROLLS WITHIN THE SAME BATCH, AND EVEN PARTS OF THE SAME ROLL MAY HAVE DIFFERENT CHEMICAL AND/OR PHYSICAL PROPERTIES. DO NOT USE THIS FOR PPE WITHOUT TESTING IT FIRST</strong></p>
