QaDFC - Quick and Dirty Filament Cleaner
prusaprinters

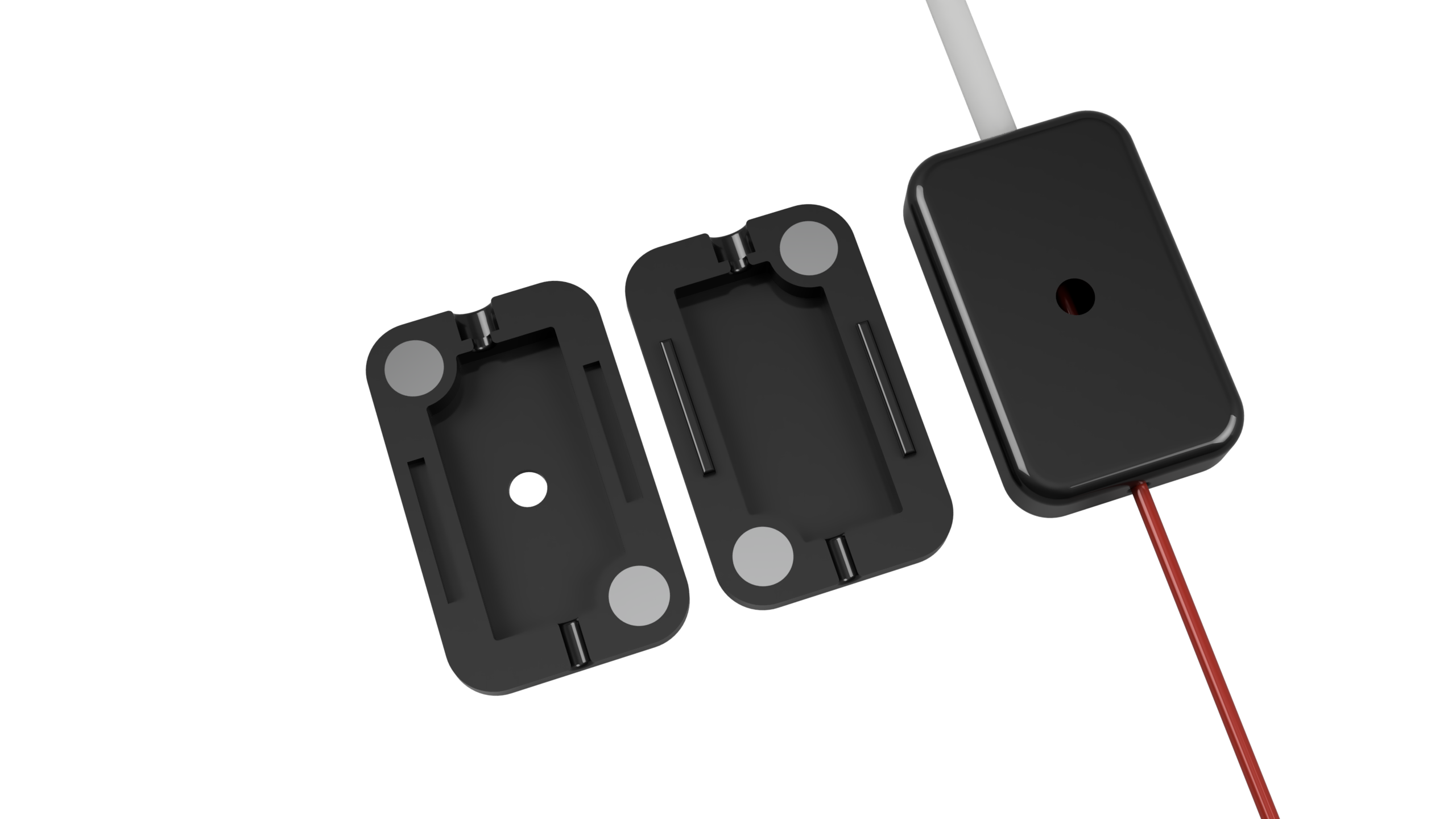

<h4>Description:</h4><p>Yet another simple Filament cleaner, that snaps together with four 6x3mm magnets.<br>Nothing special, but i got somewhat annoyed by my current hinged one, when switching through filaments in quick succession.</p><p>Of course i could have searched for some existing solution, but wheres the fun in that?<br>Also i needed a use case for those magnets anyway. ;-) So i “threw” this together and printed it all in all in under 1.5hrs - hence the "QaD" nickname.</p><p>Can also be used for oiling in case some material likes it.<br><br>Fits to a PTFE Tube on one side.<br>If interested, i'll add one with PTFE mounts on both sides.<br> </p><h4>Printing:</h4><p>Just print with 0.2mm Profiles<br>Set Perimeters to 3<br>Top/Bottom Layers 5</p><h4>Post Processing:</h4><p>If needed give it a slice with a file on the contacting surfaces</p><p>Insert four magnets on the corners, and make sure the orientation is correct.<br>Mine did fit snuggly tight, but i placed a small drop of superglue, just in case.</p><p>Cut some Sponge or Makeup pad into two pieces of 15*30*~3,5mm, and trim two oposite corners, where the magnets are.<br><br>Done</p>
