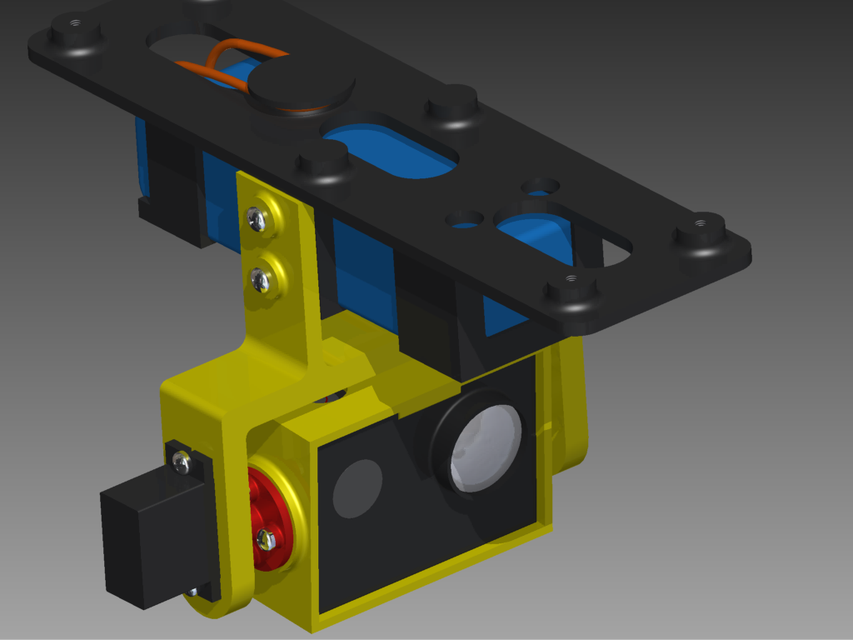

Quadcopter Action Camera Servo Activated Tilt Bracket Assembly
grabcad
This bracket system is designed to mount to the underside of a DJI F450 or clone type quadcopter.Designed with Inventor 2013, all files included in the zip folder as well as a step file. The part files can be converted to .stl for 3D Printing. Several small size 2.5mm, 3mm, etc screws are needed for assembly. Hole sizes are modeled for tapping the plastic for these screw sizes. Designed to be used with the very common MG90S Servo Motor. Enjoy!
