Raspberry Pi Camera Mount for Taz
prusaprinters

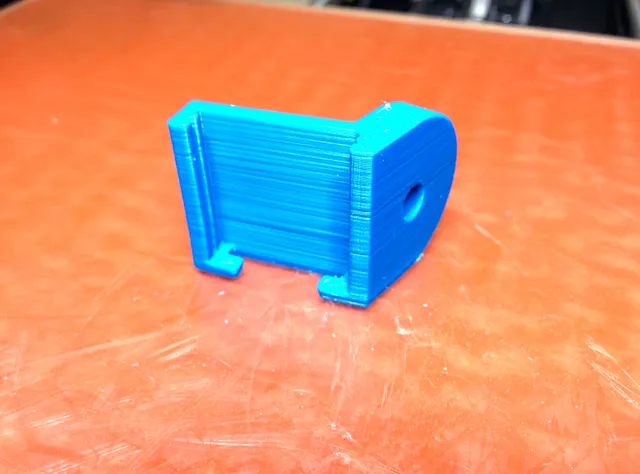

This is a simple fixture for mounting a Raspberry Pi camera to the T-slot on the frame of a Taz printer. Included are files for three bend angles (110, 115 and 120 degrees) for slightly different views of the print bed. There are two versions with the 110 deree bend, for mounting on the left or right side of the Taz frame. The cable slot on the 110 degree version has been opened in the front. This allows the camera to be inserted or removed without disconnecting the ribbon cable. I added a version with a 120 degree bend for mounting on the left side of the Taz 5 frame. This one allows you to see the print head when it is positioned at the far left. This can be secured to the frame using a Twist-In T Slot Nut. This part was designed to mount to the Taz 5 frame using a M5, 12 mm screw. Print instructionsCategory: 3D Printer Accessories
