Raspberry Pi5 + Geekworm X1001 NVMe SSD

prusaprinters

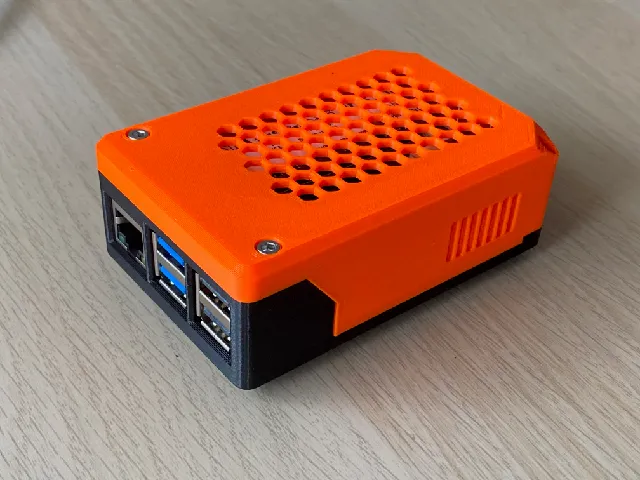

This model was inspired by another model https://www.printables.com/model/924041-raspberry-pi-5-case-with-pineberry-hatdrive-bottom, but it's not a remix. The case was designed completely from scratch.The case was designed to fit the Raspberry Pi5 with the mounted Geekworm X1001 shield for the NVME M2 SSD (https://wiki.geekworm.com/X1001). The following features were implemented:Simple design with minimal dimensions.Minimum supports during the print (could be applied for USB and Ethernet ports, but not required).All ports are available.The power button is operational.Inserting an SD card is possible without unscrewing the board but with an unscrewed upper cover.Print SettingsThe table below shows the print settings used to print the model.PropertyValueFilamentPETG, ABSInfill20%Walls3-4Top/bottom layers4Layer0.2Extra BOMScrew M3x20 SHCS - 2Screw M3x8 SHCS - 2Screw M2.5 BHCS - 4HighlightsOne of the holes in the bottom part (see image below) was intentionally designed with a smaller diameter. It is only used for bottom spacer (stand) mounting and does not participate in board fastening. Because it is screwed into plastic directly, the hole diameter was reduced for improved rigidity of the screw fastening.
