Rear foot Z-axis v2
prusaprinters

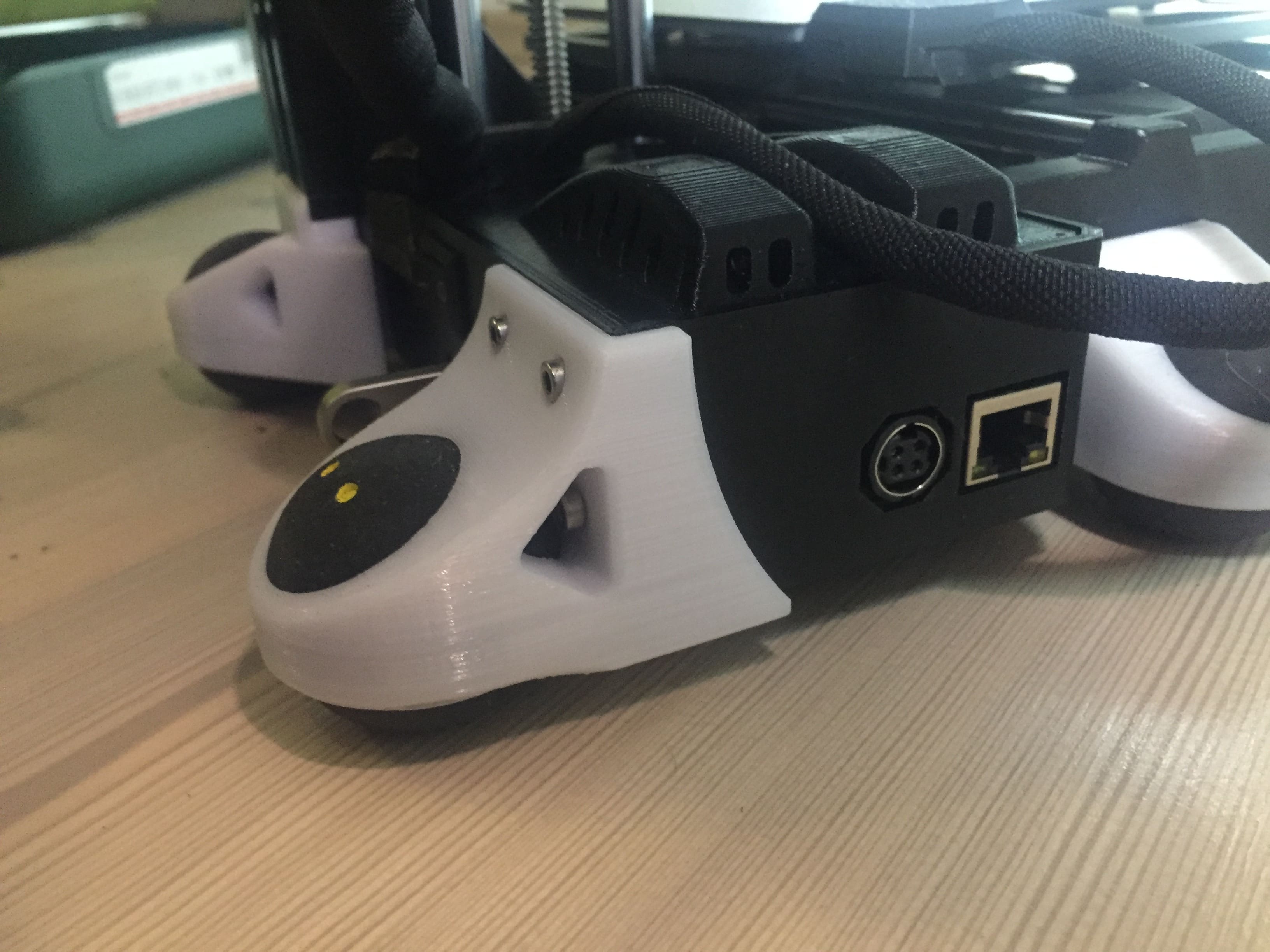

<p>Siehe auch Projekt <a href="https://www.prusaprinters.org/prints/45555">https://www.prusaprinters.org/prints/45555</a></p><p>Rear foot Z-axis for screwing to the Z_Box, I have also designed a drilling template for this.<br>It's up to you whether you use the rear foot for clamping or screwing on, of course you have to be careful when drilling.</p><p>Print the rear foot Z axis with support everywhere, 3mf file with setting is included but I did it with MK3S so please pay attention to your printer profile.</p><p>Tightening the lower M3 screw is a bit of a hassle. You need to find a way to hold the M3 nut in place when you tighten it.</p><p>required parts:<br>3x M3x8mm DIN 912 Cylinderhead screw<br>3x M3 nuts</p>
