Repbox Stack Mount

prusaprinters

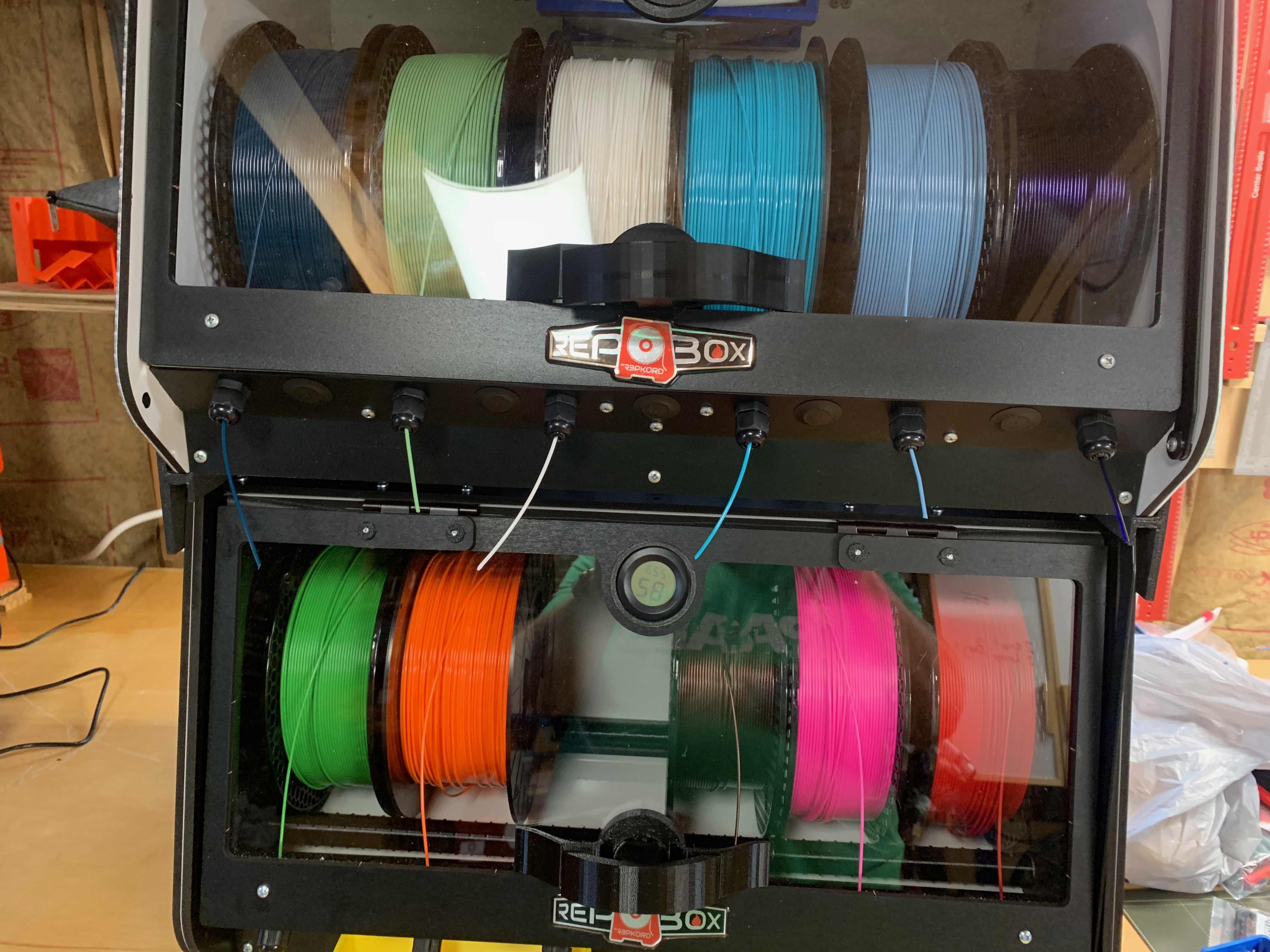

<p>Mounts to allow for safe stacking of Repkord Repboxes on top of each other. Since Repkord has discontinued the Stax mounting kit, I needed a method of safely stacking my two Repboxes atop on another.<br><br>The mounts come in front and back pieces for the left and right sides. The parts are NOT interchangeable. You can glue together if you wish. However, I found the finger joints provided sufficient rigidity without gluing.&nbsp;<br>&nbsp;</p><p>In addition to the printed parts, you will need eight #8 one inch self-taping wood screws. The original screws are not long enough with the additional width of the mounting bracket.<br>&nbsp;</p><p>My two Repboxes have slightly different wall thicknesses. So I also created a shim to fill in the gap. Print as many shims as you feel you need. I used two per side on the top box in the photos.<br><br>These mounts have only been tested with the Repbox 2.3.1 versions. I have no idea if they will work with earlier (or later) versions or not.</p><p>I printed with PLA using a .06 nozzle. However, the gcode is for a .04 nozzle as that is the only nozzle most people have. I printed with brim and smart supports on the four overhangs. Neither may be necessary, but I hate to do reprints because of failures!</p><p>If anyone would like to take on the challenge of making the front edges conform better tot he actual shape of the Repbox, send me a message and I'll share the TInkercad file with you. It proved to be beyond my meagre design capabilities.</p>
