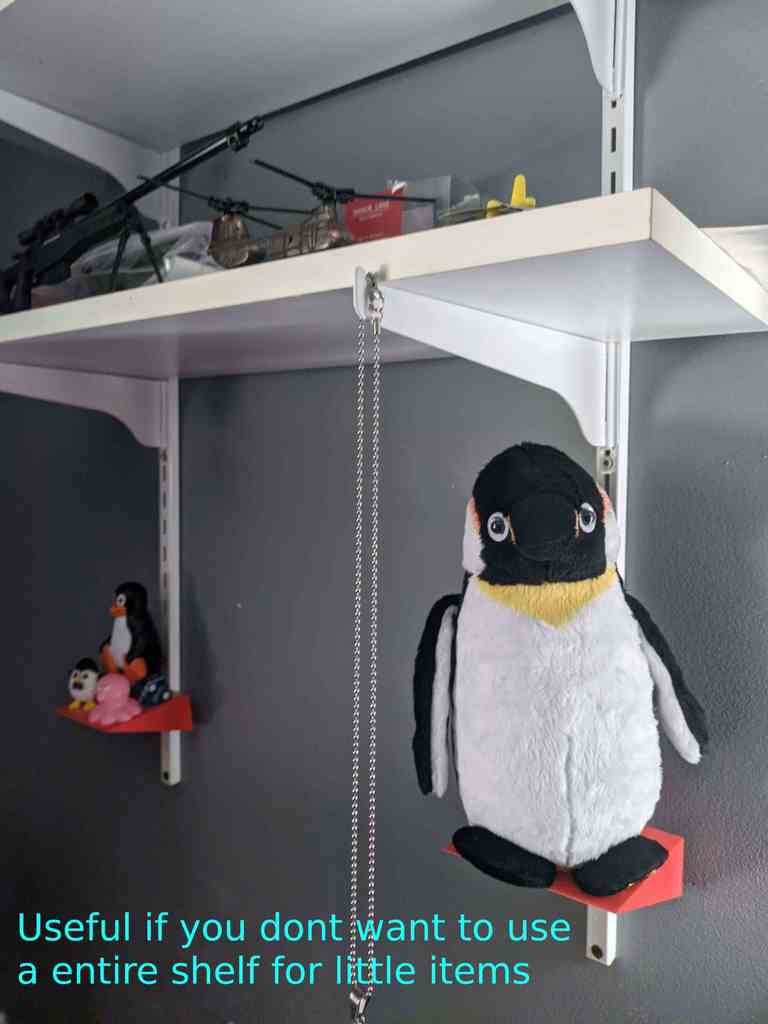

Shelf that fits standard shelving rails with slots

prusaprinters

<p>V1 Does not sit flush and requires a printer that can print the 90 degree overhang or supports.</p> <p>V2 Sits flush and does not require supports.</p> <p>V3 Blender file is cleaned up and the sketches correctly defined.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Kingroon KP3S</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2mm</p></div> <p><strong>Infill:</strong></p> <p>20%</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>V1 Requires a little support if you want the locking mechanism to come out cleanly cause it tries to print it in mid air as there was no triangle.</p> I used PLA <h3>How I Designed This</h3> <p><strong>Software</strong></p> <p>I used Blender and the CAD Sketcher add-on.</p> <p><strong>Designing</strong></p> <p>I took a extra shelf measured it and printed it that was V1. Then shortened and made a better locking mechanism for easier 3D printing and less cleanup and that was V2.</p> </div></p></p> Category: Decor
