Simple Handle

prusaprinters

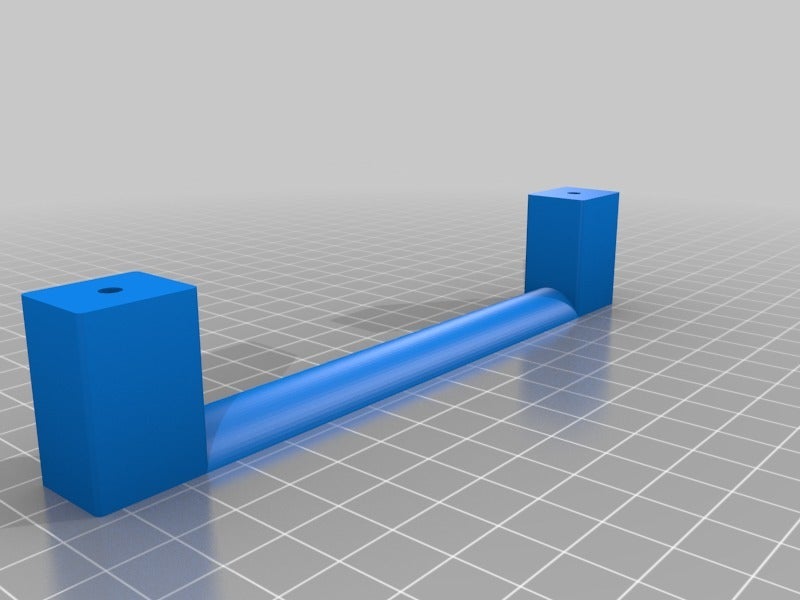

<p>Simple handle for opening and closing drawers etc. Mine broke so I took basic measurements and designed it quickly with Fusion 360.</p> <p>It's designed to be used with 4 mm (wood) screws. The hole diameter is 3.4 mm so the screws can bite well into it without cracking the object.</p> <p>Some basic measurements:</p> <p>Length: 146 mm<br/> Height: 28.5 mm<br/> Finger space: 22.27 mm<br/> Hole depth: 20 mm</p> <p>For easy installment I've added a drill template. The hole diameter there is the full 4 mm.</p> <h3>Print instructions</h3><h3>Licence: Creative Commons - Attribution - Non-Commercial - Share Alike Category: Replacement Parts Print Settings</h3> <p><strong>Printer Brand:</strong> Prusa</p> <p><strong>Printer:</strong> <a href="http://amzn.to/2rqZ6Uo">i3 MK3</a></p> <p><strong>Rafts:</strong> Doesn't Matter</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> 0.2mm</p> <p><strong>Infill:</strong> 30% Honeycomb</p> <p><strong>Filament:</strong> OWL Filament PLA Aluminium Grey<br/> <strong>Notes:</strong></p> <p>Because it should be a stable part I recommend using five perimiters and five top and bottom layers.</p> <h3> Post-Printing</h3>
