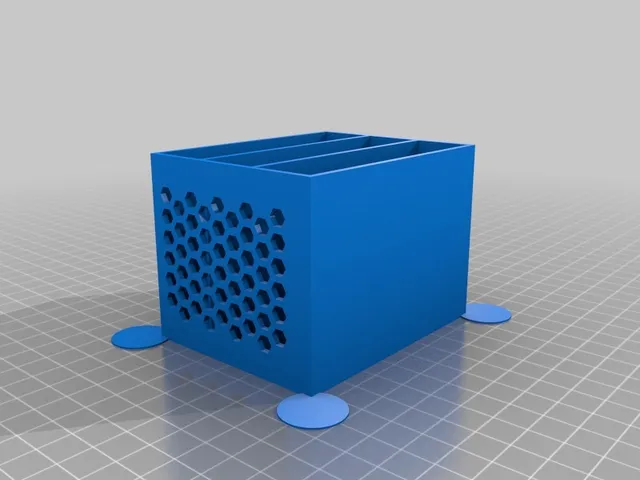

Slightly Modified Drawer Box With Hex Pattern Sides

prusaprinters

I modified the version 6 OpenSCAD file to use writecube command instead of simply write so that the text would be centered on the drawer face. Added the ability to select from available fonts used by write library for the text on the drawers. Also moved the position of the dimple stops so as to not interfere with the drawer dividers as it does in the original design. With the dimples being in the middle of the drawer the only drawer that would work in the original design would be the single slot drawer. By offsetting the dimples into the middle of the slotted areas it increases the stops holding the drawer in as well as prevent the divider interference. Warning: Something has caused customizer to not take the spacing value being passed to the writecube command. Not sure if this is specific to another recent change or not. Compiling locally in OpenSCAD is working correctly. Updates: 02/16/2015: Uploaded additional example stl files showing raised text to complement the already uploaded embossed versions. These are in essence the same as the predecessor thing with the addition of updated dimple stops. Removed top dimple stops to hopefully help make the drawers not get stuck. Doing this might lead me to revert to original design and put a single dimple in the middle of the drawer. 02/19/2015: Modified bottom of drawer to have tracks between the bump stops front to back (not yet tested). Category: Tool Holders & Boxes
