Smart LCD mount for Kossel 2020 with USB connector

prusaprinters

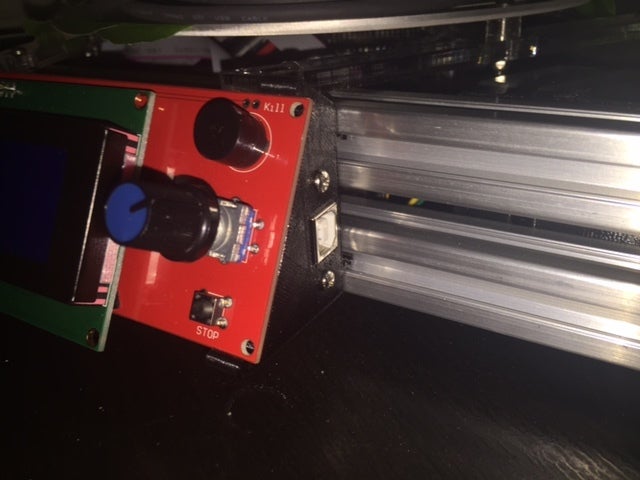

<p>I modified Rambozo's LCD mount (<a href="https://www.thingiverse.com/thing:846900">http://www.thingiverse.com/thing:846900</a>) to include enough room for a USB extension cable. This way the SD card is on the left of the LCD mount, and USB connector is on the right in case I want to directly hook up a laptop.</p> <p>Snaps onto the LCD and into the 2020 frame. If it's difficult to get onto the smart LCD, apply a little heat (e.g. a flame, briefly) to the "ears" to soften them slightly so they can be bent a bit.</p> <p>This fits USB extension cable from StarTech model USBPNLBFBM1 (<a href="http://www.startech.com/Cables/USB-2.0/Internal-and-Panel-Mount/1-ft-Panel-Mount-USB-Cable-B-to-B-Female-to-Male~USBPNLBFBM1">http://www.startech.com/Cables/USB-2.0/Internal-and-Panel-Mount/1-ft-Panel-Mount-USB-Cable-B-to-B-Female-to-Male~USBPNLBFBM1</a>)</p> <h3>Print instructions</h3><h3>Category: 3D Printer Accessories Summary</h3> <p>I modified Rambozo's LCD mount (<a href="https://www.thingiverse.com/thing:846900">http://www.thingiverse.com/thing:846900</a>) to include enough room for a USB extension cable. This way the SD card is on the left of the LCD mount, and USB connector is on the right in case I want to directly hook up a laptop.</p> <p>Snaps onto the LCD and into the 2020 frame. If it's difficult to get onto the smart LCD, apply a little heat (e.g. a flame, briefly) to the "ears" to soften them slightly so they can be bent a bit.</p> <p>This fits USB extension cable from StarTech model USBPNLBFBM1 (<a href="http://www.startech.com/Cables/USB-2.0/Internal-and-Panel-Mount/1-ft-Panel-Mount-USB-Cable-B-to-B-Female-to-Male~USBPNLBFBM1">http://www.startech.com/Cables/USB-2.0/Internal-and-Panel-Mount/1-ft-Panel-Mount-USB-Cable-B-to-B-Female-to-Male~USBPNLBFBM1</a>)</p>
