Spherical IoT-lamp

prusaprinters

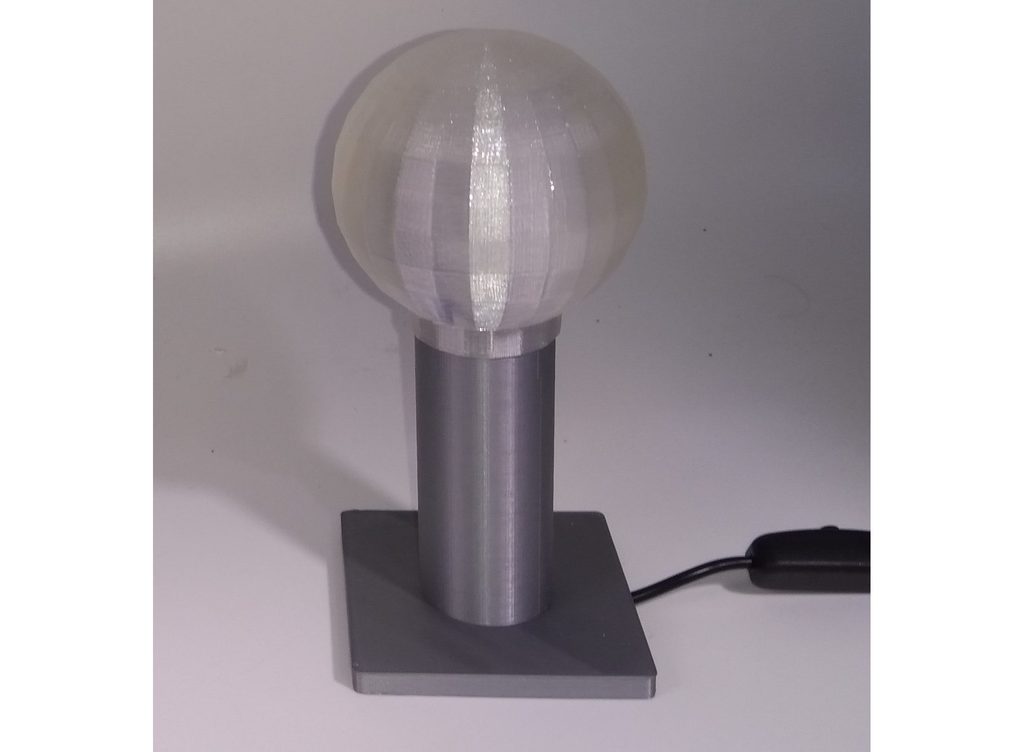

<p>IoT lamp with a sphere on top to make a nice effect when the RGB LED inside lights up. Inside the foot there is room for a WeMos D1 Mini and the sphere offers plenty room for RGB LED's or a LED-ring.</p> <p>A USB cable can be pushed into the slot on the bottom and is clamped in this way.</p> <p>Printed with 0,2mm layer thickness. The spherical top was printed using neutral coloured PLA and the base with silver coloured PLA.</p> <p>I used a small brim when printing the sphere. Infill for the base 20% or more to make it stable and 5% (preferably not more) for the sphere for best effect.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK3</p></div> <p><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>See text</p></div> <p><strong>Filament:</strong> Real PLA See text How I Designed This ===================</p> <p>Designed the lamp model in OpenScad.</p> </p></p></p> Category: Electronics
