Spring clamp with a clothespin spring
prusaprinters

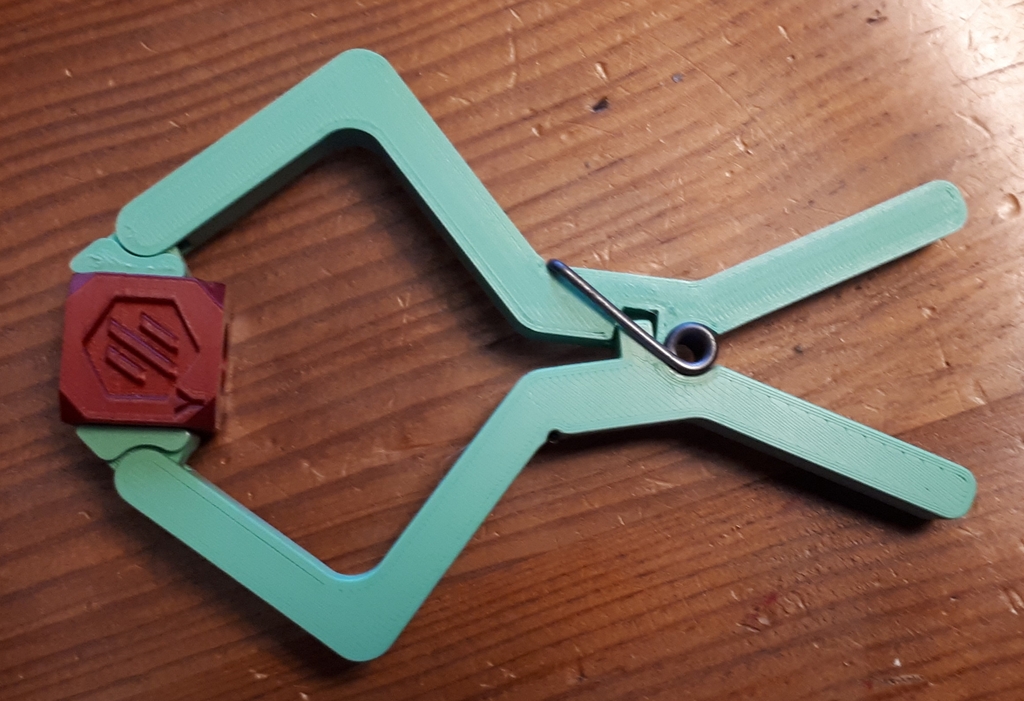

<p>This is a spring clamp that uses the spring of a standard clothespin. It is just like a regular clothespin but with bigger jaws and small pivoting surfaces for better grip.</p><p>There are three STL models, with varying jaw length. You will need two of them (of the same size, obviously).</p><p>The pivoting surface is printed in-place, you may need to do a bit of force to free it after printing. Just give it a big twist.</p><p>UPDATE 2022-02-20: I've added two notches for the spring, so that it should fit long and short springs. I've also added a notch to the top of the arms so that you can fit a rubber band if your spring is not strong enough to hold your piece.</p><p> </p><p>Designed with OnShape, model available <a href="https://cad.onshape.com/documents/9699fda22c5ee27916f4edff/w/393fee21e1b7881f9f3c9ace/e/1376d8da80dcec1ba7d73fe0?renderMode=0&uiState=620e30e4e5cc2f541335f2e0">here</a>.</p>
