Support Brace for Belted Z Mod

prusaprinters

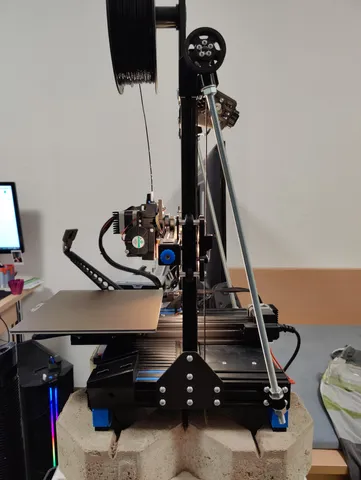

This is a thing i remixed, to add some supportbraced to my belted z mod for the Ender 3. (https://www.thingiverse.com/thing:4243512)you dont need to rotate the stl, they should be correctly oriented, but you will need supports enabled. i printed them after the recommenden Mod settings with treesupports out of PETG. I put them on my printer, but couldnt test them yet. at least they fit and feel sturdy.  BOM:2x M10x50cm threadded rod8x M10 Nuts and washers8x M5x8 SHCS and T-nuts Instructions should be straight forward, put in the bottom bracet first , then push the rod through it. preload the top bracet and put it on. slide the threadded rod into th top bracet and tighten everything. try not to force both bracets apart, this could damage them. just hand tighten the inner nuts and then counter them with the outer nuts.
