Switch buttons for Emcomat 7

prusaprinters

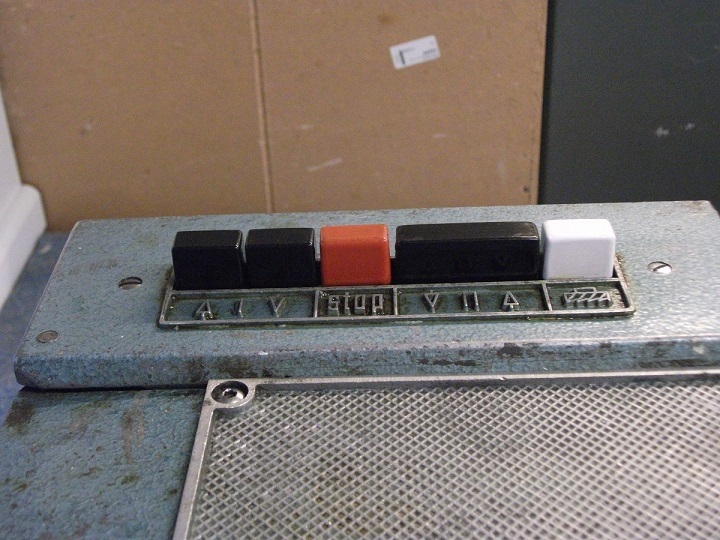

<p>A lathe popular with model engineers in the 1970s was the Austrian built Emcomat 7; there are still many of these around as they were very well built. One major flaw with them though was that the buttons on the switches would fall off or break and many surviving Emcomat lathes are missing their buttons. The buttons shown here are fitted with grub screws so that they don't jump off as the original parts did.</p><p>I printed the buttons in Acrylonitrile Styrene Acrylate (ASA) plastic which is somewhat more resistant to cleaning compounds and ultraviolet light than ABS. Printing was 0.15mm layer height and 40% infill. ASA can be Acetone polished which gives an appearance very close to the originals.</p><p>A small caveat is that Emco used many different switch bodies so it is possible that the blades that the buttons mount on may be a different size or orientation.</p><h3>Print Settings</h3><p><strong>Printer:</strong></p><p>Delta</p><p><strong>Rafts:&nbsp;</strong></p><p>No</p><p><strong>Supports:</strong></p><p>No</p><p><strong>Resolution:&nbsp;</strong></p><p>0.15mm</p><p><strong>Infill:</strong></p><p>40%</p><p><br>&nbsp;</p><p><strong>Notes:</strong></p><p>&nbsp;</p><p>File top edges (bottom as printed) Cold acetone polish. Fit M3 nuts and grub screws</p><p>&nbsp;</p><p>&nbsp;</p><p>Category: DIY</p>
