TA2WK - Homebrew Butterfly Capacitor End Plates Collections
prusaprinters

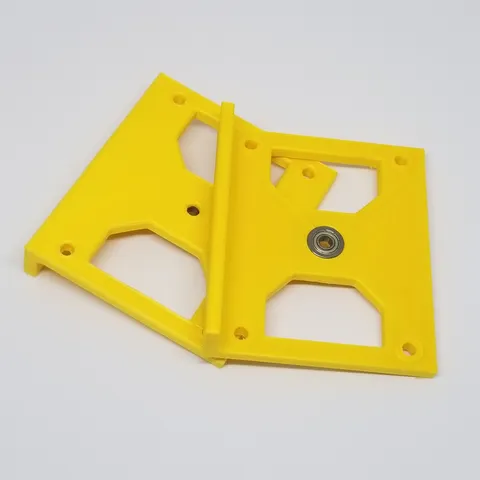

For those who would like to adjust lower capacitance value I've added a new design for adjustable stator distance. You can now leave more space for opposing stators.This is the DIY / homebrew high voltage air capacitor design for loop antenna using 3D printed end plates.PETG/ABS+ recommended but PLA+ works fine if you use indoor.Please post your makes here.If you want to buy aluminum or stainless steel laser cut plates compatible for this design check here - Ebay or here - EtsyFot the complete part list and how to assembly you can find instaructions here http://www.ta2wk.com/high-voltage-diy-air-capacitor-for-magnetic-loop-antennas/Print SettingsPrinter:Voron (Doesn't matter)Rafts: NoSupports:NoResolution: 0.2Infill:40Filament:PLA is fine but PETG/ABS suggestedYellow Post-Printing =============How to build a butterfly capacitorCategory: DIY
With this file you will be able to print TA2WK - Homebrew Butterfly Capacitor End Plates Collections with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on TA2WK - Homebrew Butterfly Capacitor End Plates Collections.
