The Ant PCB Maker - PCB lock bar mod with modified locking hook

prusaprinters

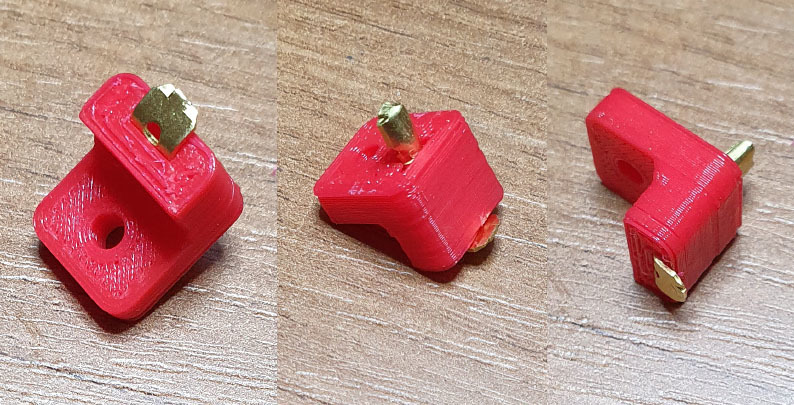

<p>I needed new base boards so there was an occasion to modify existing lock bar so it would fit my needs (to swap them easily and easy probe disconnection).</p> <p>I wanted to stop the nuts slipping in original lock bar (in my case it was an issue), so I modified original lock bar as shown on the picture. The nuts are blocked in their positions. They can't move along that bar, but they don't slip anymore for me.</p> <p>As a pin for locking hook I used medium-sized car pin (dimensions are on attached picture).</p> <p>Thanks for The Ant Team for that project!</p> <p>The ANT: <a href="https://www.youtube.com/channel/UCX44z-SSL7LzcB4xxgUdHHA/videos">https://www.youtube.com/channel/UCX44z-SSL7LzcB4xxgUdHHA/videos</a></p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Prusa clone</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2</p></div> <p><strong>Infill:</strong></p> <p>25%</p> <p><strong>Filament:</strong></p> local PLA <p>any</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>On my printer I had to scale up X and Y (horizontal plane) by 1.02 due to PLA shrinkage </p></div> </p></p> Category: DIY
